5340-01-243-4851

Bridge Clamp

5340012434851 012434851 566D421GR1

A clamp designed to straddle a cover, door or like item, and used to secure such cover, door or like item to effect a tight joint or seal. View more Bridge Clamp

Managed by United States

NSN Created on 28 Oct 1986

Data Last Changed
May 2023

NATO Update Count
3

NATO Data Quality

STYL Style B10 for 5340-01-243-4851 1/1 — NSN 5340-01-243-4851 (Identification) 1/1

Marketplace 5340-01-243-4851

Need Help?
Request a Quotation from participating marketplace vendors

Updated Every Day

5340-01-243-4851 RQST NE

Restrictions 5340-01-243-4851

5340-01-243-4851 is a Bridge Clamp that has critical features such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined. This item is a US Munitions List or Commerce Control List Item where the Item Manager, Equipment Specialist or Product Specialist must provide special demilitarization instructions. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.

Import and Export 5340-01-243-4851

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5340-01-243-4851

US Navy (N1HE)
Effective Date:: 1 Apr 1991
Supplementary Receivers:: GG; AMC 5 AMSC H IMC P IMCACTY HX

Approved Sources 5340-01-243-4851

Part Number
Manufacturer
Status
566D421GR1: 24374 - Bechtel Technical Services Inc (Obsolete); Incomplete Reference; RNCC 3 RNVC 1 DAC C

Datasheet 5340-01-243-4851

Characteristic
Specifications
FIIG: A12700
Criticality Code Justification [CRTL]: Zzzy
Material [MATT]: Aluminum Alloy 6061 Overall
Material Document And Classification [MDCL]: Astm-B211 Assn Std Single Material Response Overall
Reference Number Differentiating Characteristics [ZZZY]: Material Will Be In Accordance With Ships Parts Control Center Activity Hx Quality Control,Manufacturing And Testing Specifications

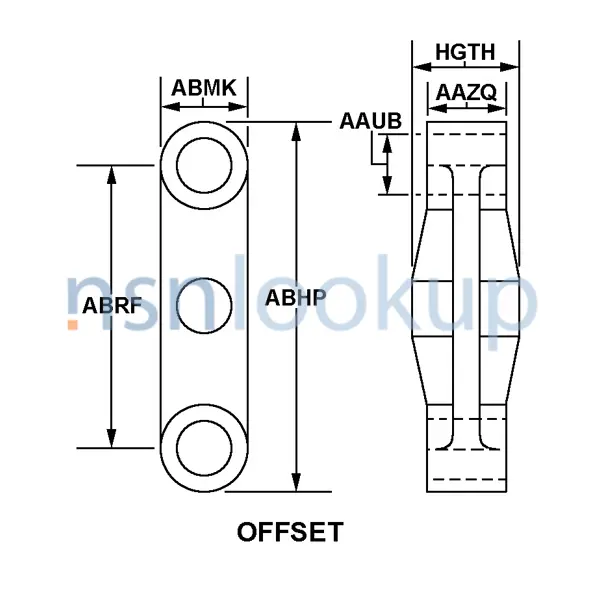

Style Designator [STYL]: Offset

Management Data 5340-01-243-4851

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe; 1
Oct 2021: Department of the Navy (DN); EA; Subscribe; 1
Oct 2020: Department of the Navy (DN); EA; Subscribe; 1
Oct 2019: Department of the Navy (DN); EA; Subscribe; 1

Navy

Cognizance:

1H: Consumable material assigned to NAVICP MECH for inventory management
Naval Inventory Control Point, Mechanicsburg

Special Material ID:

X3: Nuclear Reactor Plant (NRP) material under the technical cognizance of the NAVSEA 08 special designed, manufactured and/or treated for use in a NRP or controls thereof. This category includes all other NRP items which are not coded X2 or X4.

Issue, Repair, Requisition Restriction Code:

BL: Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipment

Similar Supply Items to 5340-01-243-4851

Freight Information 5340-01-243-4851

5340-01-243-4851 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5340-01-243-4851 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 5340-01-243-4851 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-243-4851 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-243-4851 is not classified as a special type of cargo when transported by water. 5340-01-243-4851 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5340-01-243-4851

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); Packaging Data does not meet current MIL-STD-2073-1E

Storage Environment: Heated General Purpose – Heated 40 F and above

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; A-A-203, Kraft Wrapping Paper; A-A-1898, Grade II, Water Resistant Cellulosic Cushioning; --; ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --; No Requirement
