5340-01-241-3142

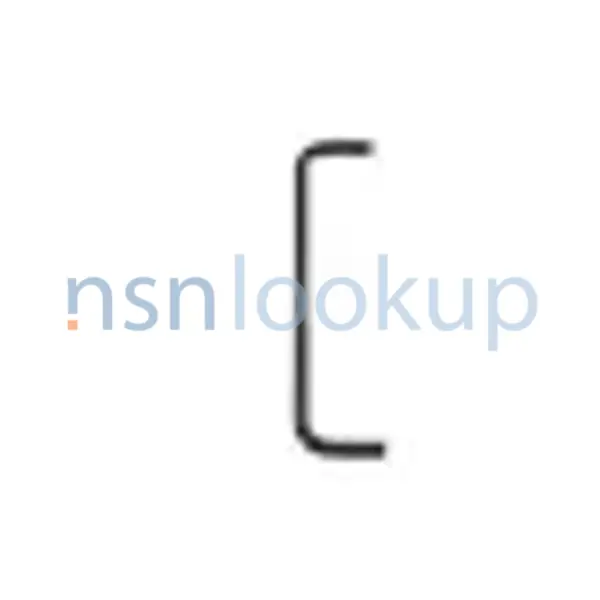

Bow Handle
5340012413142 012413142 NASM39087 MS39087-303AN MS39087-102AN
An item, usually basically U-shaped, designed to be rigidly attached to another item such as a drawer, door, or window to provide a grip for opening, closing, pulling, and the like. Includes sash lifts of the bow type and handles designed for the purpose of carrying an item. It may or may not include a mounting plate. Excludes HANDLE,DOOR. View more Bow Handle
November 2023
4
Marketplace 5340-01-241-3142
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-241-3142 5+ Documents (More...)
NASM39087 HANDLE,BOW 1 EA NS Request Quotation Subscribe to View Vendor Details...
MS39087-102AN HANDLE,BOW 2 EA NS Request Quotation Updated Every Day 5340-01-241-3142 RQST NE Updated
HANDLE,BOW 1 EA NS Request Quotation FedMall Updated Every 15 Minutes 5340-01-518-5185 BUY NASM39087
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-241-3142 Bow Handle 5340012413142 012413142 MS39087
NASM39087-306AN An item, usually basically U-shaped, designed to be rigidly attached to another item
/fsg-53/fsc-5340/us 5340-01-464-4790 Bow Handle 5340014644790 014644790 NASM39087 HANDLE,BOW 1 EA NS
Restrictions 5340-01-241-3142
5340-01-241-3142 is a Bow Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-241-3142
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBD
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 19 Jul 2011
- Former MOE Rule:
- MC10
- Germany (ZG01)
- Effective Date:
- 1 May 2003
Approved Sources 5340-01-241-3142
- Part Number
- Manufacturer
- Status
- NASM39087
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Incomplete Reference
- Incomplete Reference
- MS39087-303AN
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- MS39087-303AN
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS39087-102AN
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-01-241-3142
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 3.000 Inches Nominal
- Handle Clearance [ALMZ]
- 0.683 Inches Nominal
- Material [MATT]
- Aluminum Alloy 6061 Overall
- Mounting Facility Quantity [AKPV]
- 2
- Nominal Thread Size [CQJX]
- 0.138 Inches
- Overall Length [ABHP]
- 3.180 Inches Nominal
- Thread Series Designator [THSD]
- Unc
- Surface Treatment Document And Classification [STDC]
- Mil-A-8625,Type 2,Class 2 Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Anodize Overall
Weapon Systems (WSDC) 5340-01-241-3142
DLA Procurement Analysis 5340-01-241-3142
- Last Stock Position:
- 25 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-241-3142
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5340-01-241-3142
Freight Information 5340-01-241-3142
5340-01-241-3142 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 013120. A Sub NMFC of F. It has a NMFC Description of ALUMINUM ARTICLE NOI SUB 6. 5340-01-241-3142 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 05380 which rates the freight between FCL and LCL. 5340-01-241-3142 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-241-3142 is not classified as a special type of cargo when transported by water. 5340-01-241-3142 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-241-3142
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5340-01-241-3142 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
