5340-01-231-4780
Bumper
5340012314780 012314780 11776854 60093-059
An item so designed that when attached to an object, protects that objec from damage by reducing the force of impact with another object. For external vehicular bumpers see BUMPER, VEHICULAR. Excludes GROMMET (as modified); BUSHING, NONMETALLIC; PAD, CUSHIONING and WASHER (as modified). View more Bumper
May 2023
9
Marketplace 5340-01-231-4780
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-231-4780 1+ Documents (More...)
United States (US) 4. 5340-01-231-4780 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5340-01-231-4780 RQST Updated Every Day 5340-01-231-4780 RQST NE Related Documents
Restrictions 5340-01-231-4780
5340-01-231-4780 is a Bumper that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-231-4780
- US Army (A499)
- Effective Date:
- 1 Jul 2003
- Former MOE Rule:
- A403
- Supplementary Receivers:
- CN
Approved Sources 5340-01-231-4780
- Part Number
- Manufacturer
- Status
- 11776854
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
- 60093-059
- K0656 - Bae Systems (Operations) Limited (Active)
- Secondary Buy
- Secondary Buy

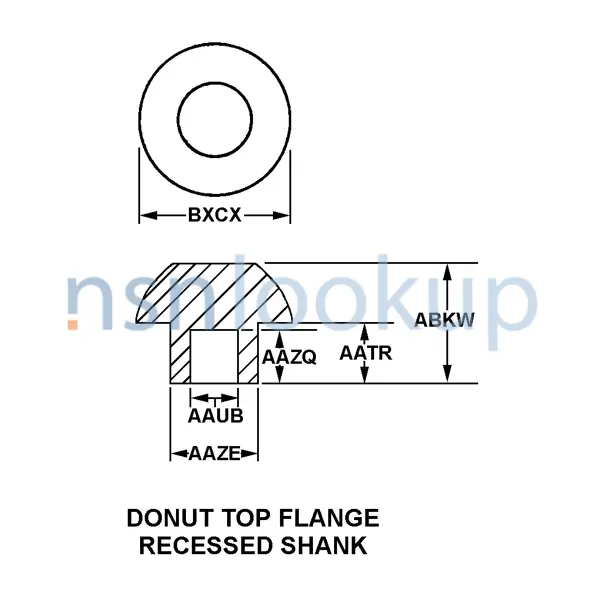

Datasheet 5340-01-231-4780
- Characteristic
- Specifications
- FIIG
- Specifications
- A535L0
- Hole Depth [AAZQ]
- 0.045 Inches Minimum And 0.050 Inches Maximum
- Hole Diameter [AAUB]
- 0.290 Inches Minimum And 0.300 Inches Maximum
- Material [MATT]
- Plastic Polyamide
- Shank Diameter [AAZE]
- 0.460 Inches Minimum And 0.470 Inches Maximum
- Overall Height [ABKW]
- 0.160 Inches Minimum And 0.170 Inches Maximum
- Style Designator [STYL]
- Err-090
Management Data 5340-01-231-4780
Army
- Materiel Category and Inventory Manager:
- M
- Ammunition weapons, and tracked combat vehicles weapons, special weapons, chemical and fire control materiel
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- H6
- Individual and Crew-Served Weapons
Armament Subsystem, 20MM and Enhanced Fire Control System, XM97E2
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5340-01-231-4780
Freight Information 5340-01-231-4780
5340-01-231-4780 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 5340-01-231-4780 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5340-01-231-4780 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 772 for ocean manifesting and military sealift. 5340-01-231-4780 is not classified as a special type of cargo when transported by water. 5340-01-231-4780 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-231-4780
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 0.5" H x 0.5" W x 0.2" L
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 2
- 0.6" H x 0.6" W x 0.4" L
- --
- --
- --
- No Requirements
- 0.6" H x 0.6" W x 0.4" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
