5340-01-222-3405
Access Door Hinge
5340012223405 012223405 41UT-1201-2 PIECE 11 FWD 41-UT-1602-2 PIECE 3 FWD
A one piece rigid item designed to rotate an access door into an open or closed position. It is drilled at one end to accommodate a shaft which serves as a pivot or axis. The other end has a curved base conforming to the contour of the access door. The base has mounting holes or other mounting facilities. Excludes LEAF,BUTT HINGE. View more Access Door Hinge
January 2023
4
Marketplace 5340-01-222-3405
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-222-3405 1+ Documents (More...)
RQST NE Updated Every Day 5340-01-222-3405 RQST Updated Every Day 5340-01-222-3405 RQST NE Related
Documents 5340-01-222-3405 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340
Restrictions 5340-01-222-3405
5340-01-222-3405 is a Access Door Hinge that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-222-3405
- US Coast Guard (C056)
- Effective Date:
- 1 Jun 2010
- Former MOE Rule:
- C165
Approved Sources 5340-01-222-3405
- Part Number
- Manufacturer
- Status
- 41UT-1201-2 PIECE 11 FWD
- Manufacturer
- 06101 - United States Coast Guard Yard (Active)
- Primary Buy
- Primary Buy
- 41-UT-1602-2 PIECE 3 FWD
- 06101 - United States Coast Guard Yard (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5340-01-222-3405
- Characteristic
- Specifications
- FIIG
- Specifications
- A25100
- Material And Location [ANNQ]
- Aluminum Overall

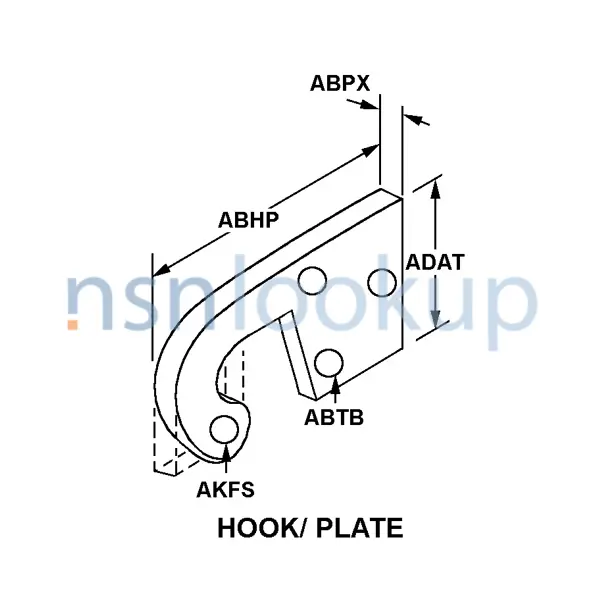

- Style Designator [STYL]
- Hook/Plate
- Overall Length [ABHP]
- 20.875 Inches Nominal
- Material Thickness [ABPX]
- 2.000 Inches Nominal
- Body Width [ADAT]
- 11.500 Inches Nominal
- Knuckle Inside Diameter [AKFS]
- 1.250 Inches Nominal
- Reversible Feature [AJNC]
- Not Included
- Hinge Pin [AKEW]
- Not Included
- Special Features [FEAT]
- 1St End Has One Round Hole; 2Nd End Welds Directly To Hatch
- End Item Identification [AGAV]
- Port Engine Room Hatch Onboard 41 Ft Utb Coast Guard Vessels
Management Data 5340-01-222-3405
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2010
- US Coast Guard (GP)
- EA
- Subscribe
- 1
- EA
Coast Guard
- Inventory Activity:
- S
- Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required
- Serial Number Control:
- 0
- Item not controlled by serial number
- Material Control:
- 9
- Non-Hazardous or Non-Sensitive Item
NATO Stock Numbers Related to 5340-01-222-3405
Freight Information 5340-01-222-3405
5340-01-222-3405 has freight characteristics managed by the US Postal Service (USPS).. 5340-01-222-3405 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
