5340-01-216-3190
Bow Handle
5340012163190 012163190 3-76073-11
An item, usually basically U-shaped, designed to be rigidly attached to another item such as a drawer, door, or window to provide a grip for opening, closing, pulling, and the like. Includes sash lifts of the bow type and handles designed for the purpose of carrying an item. It may or may not include a mounting plate. Excludes HANDLE,DOOR. View more Bow Handle
November 2023
13
Marketplace 5340-01-216-3190
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-216-3190 1+ Documents (More...)
HANDLE,BOW RQST NS Request Quotation Subscribe to View Vendor Details... 3-76073-11 HANDLE,BOW 8
EA NS Request Quotation Updated Every Day 5340-01-216-3190 RQST NE Updated Every Day 5340-01-216-3190
Restrictions 5340-01-216-3190
5340-01-216-3190 is a Bow Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-216-3190
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Brazil (YA01)
- Effective Date:
- 1 Jul 2001
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
Approved Sources 5340-01-216-3190
- Part Number
- Manufacturer
- Status
- 3-76073-11
- Manufacturer
- 76823 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy
- 3-76073-11
- 0JRC1 - Northrop Grumman Technical Services, (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5340-01-216-3190
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 7.750 Inches Nominal
- Handle Clearance [ALMZ]
- 1.750 Inches Nominal
- Hole Diameter [AAUB]
- 0.900 Inches Nominal
- Material [MATT]
- Steel Comp 1018 Overall
- Mounting Method [AXGY]
- Threaded Hole Or Unthreaded Hole
- Material Document And Classification [MDCL]
- Aisi 1018 Assn Std Single Material Response Overall
- Overall Length [ABHP]
- 8.500 Inches Nominal

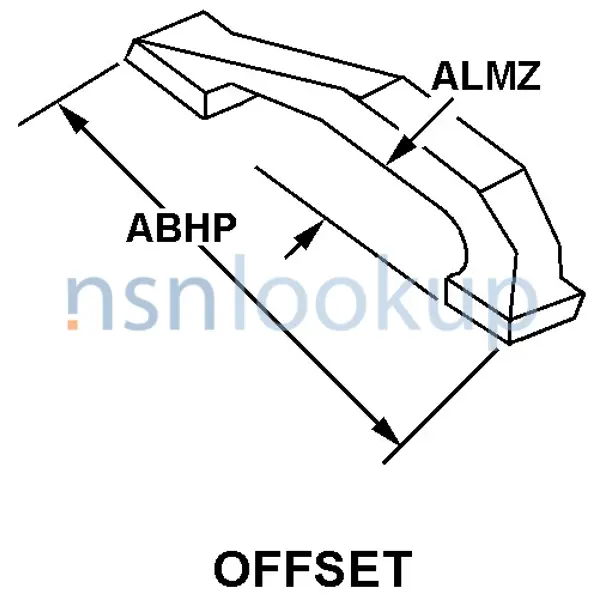

- Style Designator [STYL]
- Offset
Weapon Systems (WSDC) 5340-01-216-3190
DLA Procurement Analysis 5340-01-216-3190
- Last Stock Position:
- 14 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-216-3190
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-01-216-3190
Freight Information 5340-01-216-3190
5340-01-216-3190 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095142. A Sub NMFC of X. It has a NMFC Description of HARDWARE HANDLES,IRON/STEEL. 5340-01-216-3190 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 5340-01-216-3190 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 48490 which rates the freight between FCL and LCL. 5340-01-216-3190 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-216-3190 is not classified as a special type of cargo when transported by water. 5340-01-216-3190 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
