5340-01-210-4079

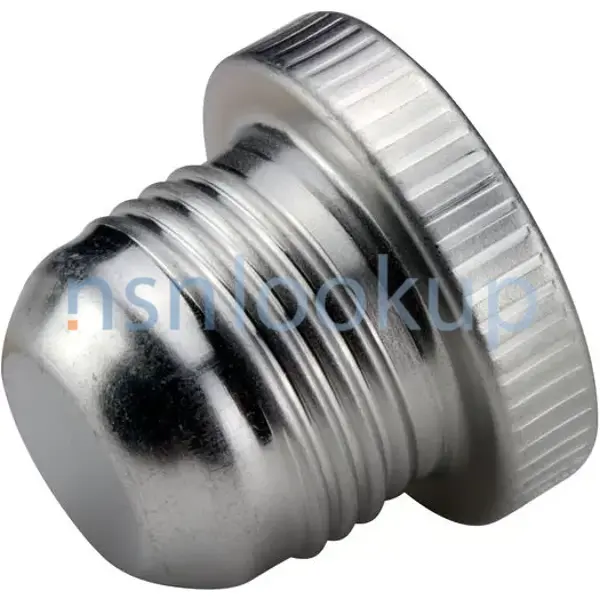

Dust And Moisture Seal Protective Plug
5340012104079 012104079 MIL-C-5501/1 ASP-5GN NAS836N5A M5501/1-5G ASP-GN5
An item specifically designed to fit into the opening(s) of various items to provide mechanical protection and/or prevent the entrance of foreign matter during painting, shipping storage, or the like. It is not designed to retain fluids under pressure during equipment operation. Excludes PLUG (as modified) and STOPPER, BOTTLE. For items designed to fit into or over the opening(s) of various items, see CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. View more Dust And Moisture Seal Protective Plug
June 2023
11
Marketplace 5340-01-210-4079
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-210-4079 5+ Documents (More...)
/fsg-53/fsc-5340/us
United States (US) 4. 5340-01-210-4079 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5340-01-210-4079 RQST Updated Every Day 5340-01-210-4079 RQST NE Related
/fsg-53/fsc-5340/us
MIL-C-5501/1 PLUG,PROTECTIVE,DUST AND MOISTURE SEAL 73 EA NS Request Quotation Subscribe to View Vendor
MIL-C-5501/1 PLUG,PROTECTIVE,DUST AND MOISTURE SEAL 42 EA NS Request Quotation Updated Every Day 5340
/fsg-53/fsc-5340/us
MIL-C-5501/1 PLUG,PROTECTIVE,DUST AND MOISTURE SEAL 73 EA NS Request Quotation Subscribe to View Vendor
MIL-C-5501/1 PLUG,PROTECTIVE,DUST AND MOISTURE SEAL 42 EA NS Request Quotation Subscribe to View Vendor
/fsg-53/fsc-5340/us
MIL-C-5501/1 PLUG,PROTECTIVE,DUST AND MOISTURE SEAL 73 EA NS Request Quotation Subscribe to View Vendor
MIL-C-5501/1 PLUG,PROTECTIVE,DUST AND MOISTURE SEAL 42 EA NS Request Quotation Updated Every Day 5340
/fsg-53/fsc-5340/us
MIL-C-5501/1 PLUG,PROTECTIVE,DUST AND MOISTURE SEAL 99 EA NS Request Quotation Subscribe to View Vendor
MIL-C-5501/1 PLUG,PROTECTIVE,DUST AND MOISTURE SEAL 42 EA NS Request Quotation Updated Every Day 5340
Restrictions 5340-01-210-4079
5340-01-210-4079 is a Dust And Moisture Seal Protective Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-210-4079
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-210-4079
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Brazil (YA01)
- Effective Date:
- 1 Jul 2001
- Singapore (YJ01)
- Effective Date:
- 1 Jul 1994
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5340-01-210-4079
- Part Number
- Manufacturer
- Status
- M5501/1-5G
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-C-5501/1
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- ASP-5GN
- 99017 - Caplugs Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- NAS836N5A
- 80205 - National Aerospace Standards (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- ASP-GN5
- 65777 - Howe Machine & Tool Corp. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5340-01-210-4079
- Characteristic
- Specifications
- FIIG
- Specifications
- A539L0
- Drive Type [AKCV]
- Serrated
- Design Type [APGF]
- Threaded
- Features Provided [CBBL]
- Gasket And Shoulder
- Material Document And Classification [MDCL]
- Qq-A-250/2 Fed Spec Single Material Response
- Material [MATT]
- Aluminum Alloy
- Overall Diameter [ADAV]
- 0.670 Inches Minimum And 0.730 Inches Maximum
- Thread Class [AAJD]
- 2A
- Thread Size And Series/Type Designator [THDS]
- 1/2-20 Unf
DLA Procurement Analysis 5340-01-210-4079
Management Data 5340-01-210-4079
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-01-210-4079
Freight Information 5340-01-210-4079
5340-01-210-4079 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 013120. A Sub NMFC of F. It has a NMFC Description of ALUMINUM ARTICLE NOI SUB 6. 5340-01-210-4079 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 05380 which rates the freight between FCL and LCL. 5340-01-210-4079 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-210-4079 is not classified as a special type of cargo when transported by water. 5340-01-210-4079 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-210-4079
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5340-01-210-4079 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
