5340-01-209-8582
Sliding Door Track
5340012098582 012098582 9376400
A fabricated form made of metal or plastic, which serves as a runway for a sliding door hanger and which is bolted directly to a structure or held by means of brackets. View more Sliding Door Track
November 2023
5
Marketplace 5340-01-209-8582
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-209-8582 1+ Documents (More...)
United States (US) 4. 5340-01-209-8582 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5340-01-209-8582 RQST Updated Every Day 5340-01-209-8582 RQST NE Related Documents
Restrictions 5340-01-209-8582
5340-01-209-8582 is a Sliding Door Track that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-209-8582
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-209-8582
- US Army (A919)
- Effective Date:
- 1 Aug 2009
- Former MOE Rule:
- A403
- Supplementary Receivers:
- AZCNBF
- US Marine Corps (MC47)
- Effective Date:
- 1 Aug 2009
Approved Sources 5340-01-209-8582
- Part Number
- Manufacturer
- Status
- 9376400
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-209-8582
- Characteristic
- Specifications
- FIIG
- Specifications
- A10600

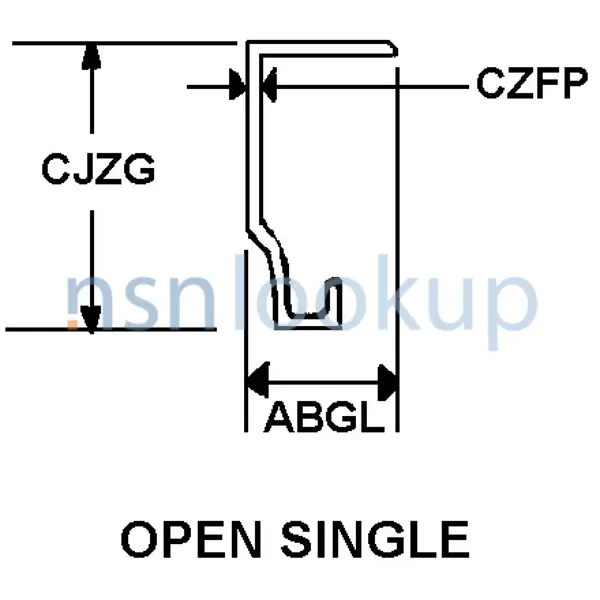

- Style Designator [STYL]
- Open Single
- Width [ABGL]
- 2.135 Inches Nominal
- Height Above Bearing Surface [CJZG]
- 3.072 Inches Nominal
- Section Shape [CCKD]
- Straight
Weapon Systems (WSDC) 5340-01-209-8582
DLA Procurement Analysis 5340-01-209-8582
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-209-8582
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- JE
- Tanks
Tank, M1 Abrams Family of Vehicles (FOV)
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5340-01-209-8582
Freight Information 5340-01-209-8582
5340-01-209-8582 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095145. A Sub NMFC of A. It has a NMFC Description of HANGERS/HANGER RAIL/TRACK DOO. 5340-01-209-8582 is rated as class 55 when transported by Less-Than Truckload (LTL) freight. 5340-01-209-8582 is rated as class 55 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 49400 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-01-209-8582 is not classified as a special type of cargo when transported by water. 5340-01-209-8582 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5340-01-209-8582 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
