5340-01-206-2354
Corrosion Preventive Anode
5340012062354 012062354 W3T105296 50825
An item which sacrificially corrodes when coupled to a more noble metal in a conducting medium. View more Corrosion Preventive Anode
June 2023
5
Marketplace 5340-01-206-2354
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-206-2354 5+ Documents (More...)
) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-206-2354 Corrosion Preventive Anode 5340012062354
Corrosion Preventive Anode 5340012062354 -256-4397 Part NumberManufacturerStatus39-50825 https/
www.nsnlookup.com /fsg-59/fsc-5935/ca 5935-21-909 https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-206-2354
Corrosion Preventive Anode 5340012062354 -256-4397 Part NumberManufacturerStatus39-50825 https/
3280-50825 Managed by United Kingdom NSN Created on 29 Oct 2002 Data Last Changed January 2023 NATO
Corrosion Preventive Anode 5340012062354 Documents 5340-01-206-2354 5+ Documents ( More... ) https
.. ) https//www.nsnlookup.com /fsg-59/fsc-5920/uk 5920-99-256-4397 Fuse 5920992564397 992564397,39-50825
Corrosion Preventive Anode 5340012062354 Cable Assembly6150015697436 015697436204-50825 https//
/us 2930-01-266-2114 Engine Cooling System Pump 2930012662114 Buy RNCC 3 RNVC 2 DAC 2 M-KPG-481222-50825
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-206-2354 Corrosion Preventive Anode 5340012062354
Restrictions 5340-01-206-2354
5340-01-206-2354 is a Corrosion Preventive Anode that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item has been determined to be hazardous and information is contained in the Hazardous Materials Information Resource System (HMIRS). This item contains Platinum.
End Users 5340-01-206-2354
- US Coast Guard (C056)
- Effective Date:
- 29 Jun 2010
- Former MOE Rule:
- C165
- US Coast Guard (C918)
- Effective Date:
- 1 Sep 2014
Approved Sources 5340-01-206-2354
- Part Number
- Manufacturer
- Status
- W3T105296
- Manufacturer
- 89357 - Evoqua Water Technologies Llc (Active)
- Primary Buy
- Primary Buy
- 50825
- 89357 - Evoqua Water Technologies Llc (Active)
- Secondary Buy
- Secondary Buy

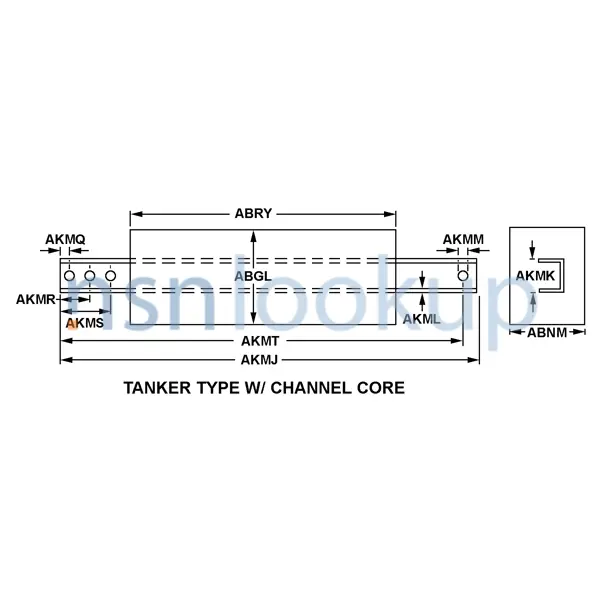

Datasheet 5340-01-206-2354
- Characteristic
- Specifications
- FIIG
- Specifications
- A25200
- Distance From Edge To Center Of First Hole [AKMQ]
- 1.437 Inches Nominal
- Distance From Edge To Center Of Fourth Hole [AKMT]
- 20.937 Inches Nominal
- Distance From Edge To Center Of Second Hole [AKMR]
- 2.937 Inches Nominal
- Distance From Edge To Center Of Third Hole [AKMS]
- 14.437 Inches Nominal
- Construction [ARQS]
- Solid
- Core Hole Diameter [AKMM]
- 0.375 Inches Nominal
- Core Length [AKMJ]
- 45.501 Inches Nominal
- Core Thickness [AKML]
- 1.000 Inches Nominal
- Core Width [AKMK]
- 2.687 Inches Nominal
- Precious Material And Location [PMLC]
- External Coating Platinum
- Precious Material [PRMT]
- Platinum
- Length [ABRY]
- 48.000 Inches Nominal
- Material And Location [ANNQ]
- Platinum Anode
- Weight [WGHT]
- 30.0 Pounds
- Width [ABGL]
- 4.375 Inches Nominal
- Style Designator [STYL]
- Tanker Type With Channel Core
- Thickness [ABNM]
- 1.000 Inches Nominal
DLA Procurement Analysis 5340-01-206-2354
Management Data 5340-01-206-2354
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-01-206-2354
Freight Information 5340-01-206-2354
5340-01-206-2354 has freight characteristics managed by the US Postal Service (USPS).It has a National Motor Freight Classification (NMFC) of 200500. A Sub NMFC of X. It has a NMFC Description of ZINC:ANODES. 5340-01-206-2354 is rated as class 55 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 98260 which rates the freight between FCL and LCL. 5340-01-206-2354 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-206-2354 is not classified as a special type of cargo when transported by water. 5340-01-206-2354 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
