5340-01-189-2780

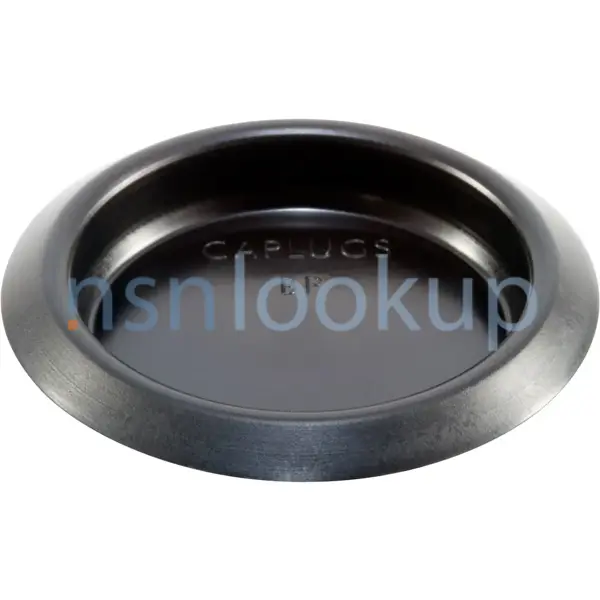

Plug Button
5340011892780 011892780 BP-1-1/8
An item, usually made of metal, having a finished cap with spring tension prongs on the underside, or spring wire fitted into the sides of the walls. When inserted in punched or drilled holes in metal sheets or tubes, the expanding action of the prongs or spring wire holds the item securely in place. It is specifically designed to close a hole; to cover a hole through which passes a shaft, cable, or the like; or to provide a perforated cover for a vent or breather hole. Excludes FASTENER, SPRING TENSION, TRIM. View more Plug Button
September 2025
4
Marketplace 5340-01-189-2780
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-189-2780 5+ Documents (More...)
Every Day 5340-01-189-2780 RQST NE Related Documents 5340-01-189-2780 3+ Documents ( More... ) https
//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-189-2780 Plug Button 5340011892780011892780,BP-1-1/8
Documents 1710-01-549-7482 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-189-2780
Plug Button 5340011892780 011892780,BP-1-1/8 Upgrade for $1 a day Upgrade your Account Upgrade
Plug Button 5340011892780 011892780,BP-1-1/8 of the Air Force (DF)EA Subscribe 1 Similar Supply
Items to 5340-01-189-2780 5340-01-084-1619 5340-00-158-0470 Restrictions 5340-00-158-0470 DEMIL: A |
Restrictions 5340-01-189-2780
5340-01-189-2780 is a Plug Button that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-189-2780
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FXKZ
Approved Sources 5340-01-189-2780
- Part Number
- Manufacturer
- Status
- BP-1-1/8
- Manufacturer
- 99017 - Caplugs Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-189-2780
- Characteristic
- Specifications
- FIIG
- Specifications
- A538U0
- Head Opening Inside Diameter [BZGB]
- 1.107 Inches Minimum And 1.155 Inches Maximum
- Head Outside Diameter [AGPW]
- 1.530 Inches Nominal
- Material [MATT]
- Plastic Polyethylene
- Material Accommodated Thickness [AGSM]
- 0.020 Inches Minimum And 0.180 Inches Maximum
- Overall Height [ABKW]
- 0.430 Inches Nominal
Weapon Systems (WSDC) 5340-01-189-2780
DLA Procurement Analysis 5340-01-189-2780
Management Data 5340-01-189-2780
Similar Supply Items to 5340-01-189-2780
Freight Information 5340-01-189-2780
5340-01-189-2780 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093600. A Sub NMFC of X. It has a NMFC Description of BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC. 5340-01-189-2780 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 5340-01-189-2780 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 49780 which rates the freight between FCL and LCL. 5340-01-189-2780 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-189-2780 is not classified as a special type of cargo when transported by water. 5340-01-189-2780 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-189-2780
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5340-01-189-2780 1 Records
Contracting Technical Data File (CTDF) 5340-01-189-2780 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
