5340-01-164-0525
Plug Button
5340011640525 011640525 XS51162-K1611 XS51162-K1610
An item, usually made of metal, having a finished cap with spring tension prongs on the underside, or spring wire fitted into the sides of the walls. When inserted in punched or drilled holes in metal sheets or tubes, the expanding action of the prongs or spring wire holds the item securely in place. It is specifically designed to close a hole; to cover a hole through which passes a shaft, cable, or the like; or to provide a perforated cover for a vent or breather hole. Excludes FASTENER, SPRING TENSION, TRIM. View more Plug Button
November 2023
4
Marketplace 5340-01-164-0525
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-164-0525 3+ Documents (More...)
XS51162-K1611 BUTTON,PLUG 62 EA NS Request Quotation FedMall Updated Every 15 Minutes 5340-01-164-0525
BUY NE FedMall Updated Every Day 5340-01-164-0525 RQST NE Updated Every Day 5340-01-164-0525 RQST Updated
Plug Button 5340011640525 011640525 Upgrade your Account Upgrade 5340-01-164-0525Plug Button5340011640525
011640525 XS51162-K1611 XS51162-K1610 12-165-9513 Friction Catch Stud 5340121659513 121659513 Optic
Restrictions 5340-01-164-0525
5340-01-164-0525 is a Plug Button that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-164-0525
- MOE Rule:
- BGX1
- Effective Date:
- 1 Sep 2005
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- United States of America (ZZ)
Approved Sources 5340-01-164-0525
- Part Number
- Manufacturer
- Status
- XS51162-K1611
- Manufacturer
- 83058 - Trw Assemblies And Fasteners Group (Obsolete)
- Original Design
- Original Design
- XS51162-K1610
- 83058 - Trw Assemblies And Fasteners Group (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-01-164-0525
- Characteristic
- Specifications
- FIIG
- Specifications
- A538U0
- Head Opening Inside Diameter [BZGB]
- 1.625 Inches Nominal
- Material [MATT]
- Steel
- Style Designator [STYL]

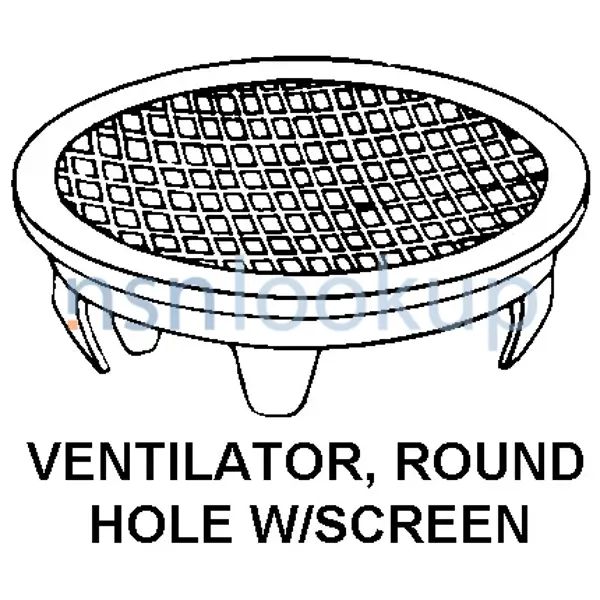

- Ventilator, Round Hole W/ Screen
- Surface Treatment [SFTT]
- Chromium
Weapon Systems (WSDC) 5340-01-164-0525
DLA Procurement Analysis 5340-01-164-0525
- Last Stock Position:
- 120 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-164-0525
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- IM
- GROUND NAVIGATION AIDS NAVAIDS PROJECTS, 404L TRAFFIC CONTROL APPROACH AND LANDING SYSTEM (TRACLS)
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 5340-01-164-0525
Freight Information 5340-01-164-0525
5340-01-164-0525 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-01-164-0525 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5340-01-164-0525 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-164-0525 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-164-0525 is not classified as a special type of cargo when transported by water. 5340-01-164-0525 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5340-01-164-0525 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
