5340-01-161-1720
Retaining Strap
5340011611720 011611720 558290
A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING. View more Retaining Strap
November 2023
12
Marketplace 5340-01-161-1720
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-161-1720 3+ Documents (More...)
United States (US) 4. 5340-01-161-1720 Marketplace Restrictions Approved Sources Datasheet Management
5340-01-161-1720 RQST Updated Every Day 5340-01-161-1720 RQST NE Related Documents 5340-01-161-1720
enable JavaScript in your web browser . 5820-14-325-7949Circuit Card Assembly5820143257949 143257949 558290
JavaScript in your web browser . 4730-14-465-5884Pipe To https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-161-1720
JavaScript in your web browser . 4730-14-465-5884Pipe To Tube Swivel Joint4730144655884 144655884 558290
Documents 5820-14-325-7949 1+ Documents ( More https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-161-1720
Restrictions 5340-01-161-1720
5340-01-161-1720 is a Retaining Strap that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-161-1720
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
Approved Sources 5340-01-161-1720
- Part Number
- Manufacturer
- Status
- 558290
- Manufacturer
- 77445 - Rtx Corporation (Active)
- Primary Buy
- Primary Buy
- 558290
- 81924 - Atomic Energy Commission (Active)
- Canceled/Obsolete
- Canceled/Obsolete

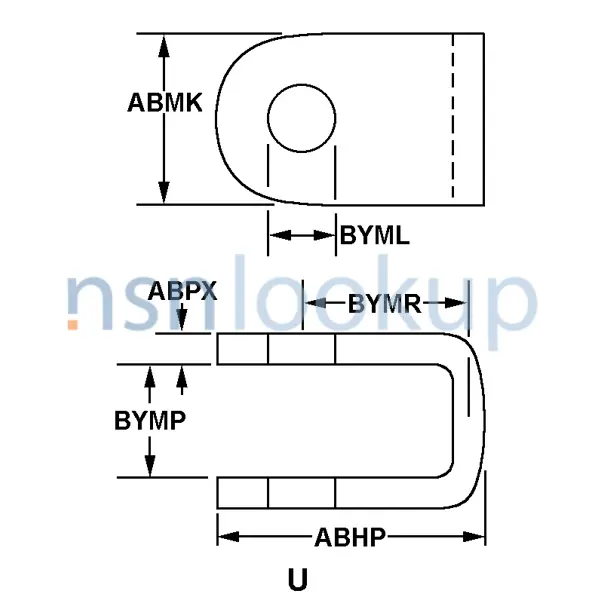

Datasheet 5340-01-161-1720
- Characteristic
- Specifications
- FIIG
- Specifications
- T372-A
- Center To Center Distance Between Arch And Mounting Hole [BYMR]
- 0.700 Inches Nominal
- Cushion [BXQG]
- Not Included
- Material Thickness [ABPX]
- 0.086 Inches Minimum And 0.102 Inches Maximum
- Material [MATT]
- Steel Comp 410
- Mounting Hole Size [BYML]
- 0.276 Inches Minimum And 0.286 Inches Maximum
- Mounting Pad [BXQJ]
- Not Included
- Inside Diameter/Arch Length [BYMP]
- 1.615 Inches Minimum And 1.635 Inches Maximum
- Overall Length [ABHP]
- 0.950 Inches Nominal
- Overall Width [ABMK]
- 0.500 Inches Nominal
- Special Features [FEAT]
- One Leg Has 118 Deg. Angle,With 0.245-0.255 In. Dia Mounting Hole
- Style Designator [STYL]
- U
Weapon Systems (WSDC) 5340-01-161-1720
DLA Procurement Analysis 5340-01-161-1720
- Last Stock Position:
- 516 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-161-1720
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 5340-01-161-1720
Freight Information 5340-01-161-1720
5340-01-161-1720 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5340-01-161-1720 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-161-1720 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-161-1720 is not classified as a special type of cargo when transported by water. 5340-01-161-1720 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-161-1720
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Container
Procurement History 5340-01-161-1720 2 Records
Contracting Technical Data File (CTDF) 5340-01-161-1720 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
