5340-01-149-5975
Door Handle
5340011495975 011495975 HC-13LH 125246-2
A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB. View more Door Handle
May 2023
3
Marketplace 5340-01-149-5975
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-149-5975 4+ Documents (More...)
BUY NE FedMall Updated Every Day 5340-01-149-5975 RQST NE Updated Every Day 5340-01-149-5975 RQST
Updated Every Day 5340-01-149-5975 RQST NE Related Documents 5340-01-149-5975 4+ Documents ( More...
Door Handle 5340011495975 011495975,HC-13LH https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01
-149-5975 Door Handle 5340011495975011495975,HC-13LH Twist Drill 5133660311279 660311279,13LH Active)
Door Handle 5340011495975 011495975,HC-13LH $1 a day Upgrade your Account Upgrade 5340-01-149-5975Door
Handle5340011495975 011495975 HC-13LH 125246 NumberManufacturerStatusHC-13LH 06666 - General Devices
Door Handle 5340011495975 011495975,HC-13LH $1 a day Upgrade your Account Upgrade 5340-01-149-5975Door
Handle5340011495975 011495975 HC-13LH 125246 Helical E Spring 5340003922120 003922120 Handle5342010506314
Restrictions 5340-01-149-5975
5340-01-149-5975 is a Door Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-149-5975
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
Approved Sources 5340-01-149-5975
- Part Number
- Manufacturer
- Status
- HC-13LH
- Manufacturer
- 06666 - General Devices Co Inc (Active)
- Primary Buy
- Primary Buy
- 125246-2
- 37695 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5340-01-149-5975
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Surface Treatment [SFTT]
- Lacquer Overall
- Surface Treatment [SFTT]
- Chromium Shaft
- Color [HUES]
- Black, Dull Overall

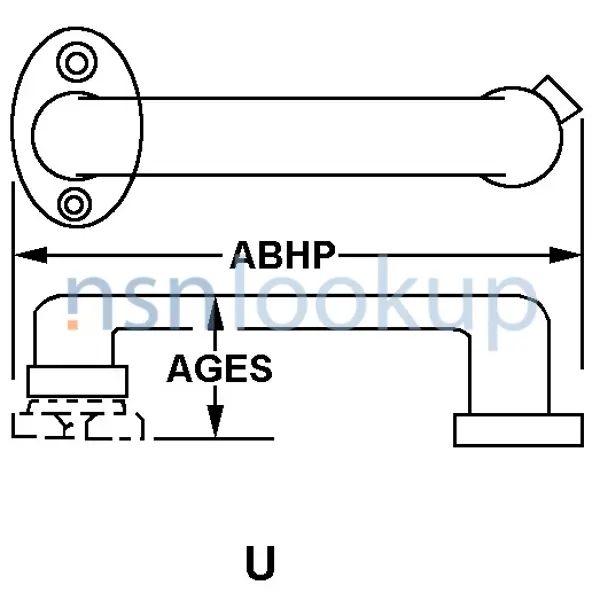

- Style Designator [STYL]
- U
- Overall Length [ABHP]
- 4.156 Inches Nominal
- Handle Height [AGES]
- 1.406 Inches Nominal
- Mounting Facility Quantity [AKPV]
- 2
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 3.531 Inches Nominal
- Features Provided [CBBL]
- Lock Accommodation
- Special Features [FEAT]
- One Hole 0.656 In. Dia; Left Hand Operation
DLA Procurement Analysis 5340-01-149-5975
Management Data 5340-01-149-5975
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-01-149-5975
Freight Information 5340-01-149-5975
5340-01-149-5975 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095142. A Sub NMFC of X. It has a NMFC Description of HARDWARE HANDLES,IRON/STEEL. 5340-01-149-5975 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48490 which rates the freight between FCL and LCL. 5340-01-149-5975 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-01-149-5975 is not classified as a special type of cargo when transported by water. 5340-01-149-5975 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-149-5975
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Container
Contracting Technical Data File (CTDF) 5340-01-149-5975 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
