5340-01-126-9181
Loop Clamp
5340011269181 011269181 MIL-DTL-85052/3 TA026000111HC M85052/3-11 MIL-C-85052/3 10112504
A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE. View more Loop Clamp
November 2023
17
Marketplace 5340-01-126-9181
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-126-9181 5+ Documents (More...)

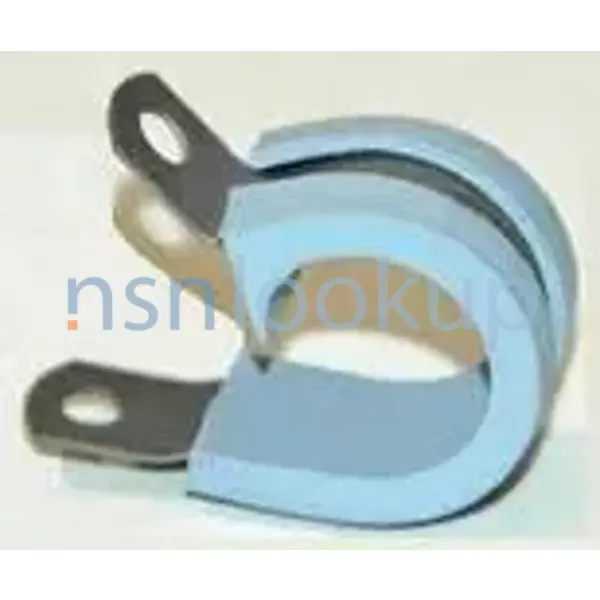

Photo 1/2 NSN 5340-01-126-9181 (Identification) 2/2 - - 1.
M85052-3-11 CLAMP,LOOP 99 EA NS Request Quotation Subscribe to View Vendor Details...
10112421 A clamp designed to surround other item(s) such MIL-C-85052/3 CLAMP,LOOP 6 EA NS Request
TA026000116HC 9M972-16S M85052/3-16 MIL-C-85052/3 10112412 A clamp designed to surround other
MIL-C-85052/3 CLAMP,LOOP 6 EA NS Request Quotation Subscribe to View Vendor Details...
10319842 A clamp designed to surround other item(s) such MIL-C-85052/3 CLAMP,LOOP 6 EA NS Request
MIL-C-85052/3 CLAMP,LOOP 6 EA NS Request Quotation Subscribe to View Vendor Details...
10319842 A clamp designed to surround other item(s) such MIL-C-85052/3 CLAMP,LOOP 6 EA NS Request
MIL-C-85052/3 CLAMP,LOOP 6 EA NS Request Quotation Subscribe to View Vendor Details...
10319842 A clamp designed to surround other item(s) such MIL-C-85052/3 CLAMP,LOOP 6 EA NS Request
Restrictions 5340-01-126-9181
5340-01-126-9181 is a Loop Clamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-126-9181
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-126-9181
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEJBHD
- Finland (WF01)
- Effective Date:
- 1 Apr 2011
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 May 1996
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Feb 1995
- Italy (ZR01)
- Effective Date:
- 1 Nov 2012
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
Approved Sources 5340-01-126-9181
- Part Number
- Manufacturer
- Status
- M85052/3-11
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-85052/3
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- TA026000111HC
- 84971 - Ta Aerospace Co (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MIL-C-85052/3
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10112504
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 5340-01-126-9181
- Characteristic
- Specifications
- FIIG
- Specifications
- A12700
- Distance From Loop Center To Tongue End [AZDC]
- 1.022 Inches Nominal
- Center To Center Distance Between Loop And Mounting Hole [AZCY]
- 0.789 Inches Minimum And 0.819 Inches Maximum
- Cushioning Environmental Protection [AAAP]
- Hydraulic Fluid And Fuel Resistant
- Diameter [ABMZ]
- 0.194 Inches Minimum And 0.209 Inches Maximum
- Material Document And Classification [MDCL]
- Mil-S-25043 Mil Spec Single Material Response Band
- Material Document And Classification [MDCL]
- Ta88-50 Fscm 84971 Mfr Ref Single Material Response Cushion
- Material Thickness [ABPX]
- 0.030 Inches Minimum And 0.034 Inches Maximum
- Material [MATT]
- Rubber Silicone Class Q Cushion
- Material [MATT]
- Steel Comp 631 Band
- Loop Inside Diameter [BZTN]
- 0.688 Inches Nominal
- Overall Width [ABMK]
- 0.500 Inches Nominal
- Tongue Hole Type [AAAL]
- Round, Unthreaded
- Style Designator [STYL]
- Offset Mount
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Band
- Surface Treatment [SFTT]
- Passivate Band
Weapon Systems (WSDC) 5340-01-126-9181
DLA Procurement Analysis 5340-01-126-9181
- Last Stock Position:
- 209 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-126-9181
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- CC
- Other Aircraft Categories
Multi-Application Aviation Spares
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-01-126-9181
Freight Information 5340-01-126-9181
5340-01-126-9181 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5340-01-126-9181 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-126-9181 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-126-9181 is not classified as a special type of cargo when transported by water. 5340-01-126-9181 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-126-9181
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5340-01-126-9181 9 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7L122P4816
- 13 Apr 2022
- Subscribe
- 284
- Subscribe
- Subscribe
- Subscribe
- SPE7L122P0171
- 17 Feb 2022
- Subscribe
- 48
- Subscribe
- Subscribe
- Subscribe
- SPE7L122P2984
- 17 Feb 2022
- Subscribe
- 108
- Subscribe
- Subscribe
- Subscribe
- SPE5EY19F5105
- 21 Dec 2018
- Subscribe
- 96
- Subscribe
- Subscribe
- Subscribe
- SPE5EY19F2531
- 15 Nov 2018
- Subscribe
- 67
- Subscribe
- Subscribe
- Subscribe
- SPE5EY19F0957
- 19 Oct 2018
- Subscribe
- 52
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F396G
- 13 Sep 2018
- Subscribe
- 31
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F2154
- 29 Nov 2017
- Subscribe
- 505
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F0016
- 01 Oct 2017
- Subscribe
- 375
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5340-01-126-9181 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
