5340-01-099-3414
Strap Fastener Loop
5340010993414 010993414 70219-02313-102
An item of rigid material having an aperture or opening through which the end(s) of a strap(s) or belt(s) is designed to be inserted, folded, and secured to itself by sewing, riveting, or the like. It is used to fasten the end(s) of a strap or belt to itself, to another belt or strap, or to an object or structure. View more Strap Fastener Loop
November 2023
11
Marketplace 5340-01-099-3414
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-099-3414 3+ Documents (More...)
FITTING 4 EA NS Request Quotation Subscribe to View Vendor Details... 5340-01-099-3414 LOOP,STRAP
FASTENER 1 EA NS Request Quotation Updated Every Day 5340-01-099-3414 RQST NE Updated Every Day 5340
Strap Fastener Loop 5340010993414 010993414 4238 Dee Ring 5365014994238 014994238 NominalSpecial
(P/N 70219-02313-102)Stock Size [AWGP]0.037-0.040 In.
Restrictions 5340-01-099-3414
5340-01-099-3414 is a Strap Fastener Loop that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-01-099-3414
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-099-3414
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- US Air Force (FGGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FGKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Brazil (YA01)
- Effective Date:
- 1 Oct 2001
- Australia (ZA01)
- Effective Date:
- 1 Jun 1997
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5340-01-099-3414
- Part Number
- Manufacturer
- Status
- 70219-02313-102
- Manufacturer
- 78286 - Sikorsky Aircraft Corporation (Active)
- Primary Buy
- Primary Buy

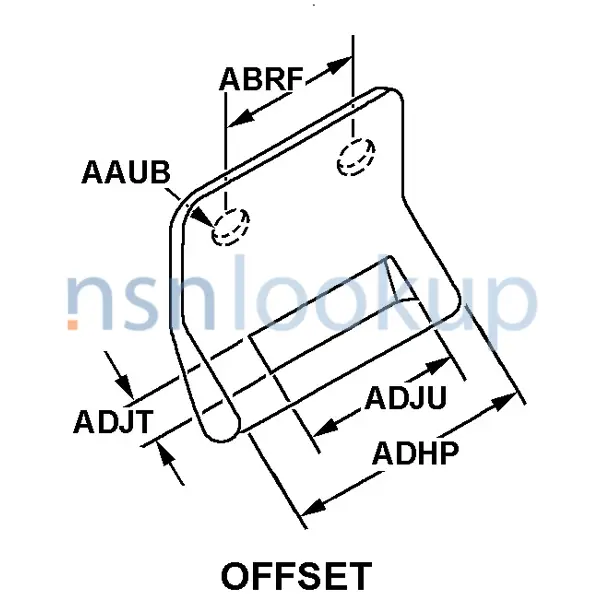

Datasheet 5340-01-099-3414
- Characteristic
- Specifications
- FIIG
- Specifications
- T372-L
- Center To Center Distance Between Holes [ABRF]
- 1.250 Inches Nominal
- Hole Diameter [AAUB]
- 0.205 Inches Nominal
- Inside Width [ADJT]
- 0.440 Inches Nominal
- Overall Length [ABHP]
- 2.000 Inches Nominal
- Style Designator [STYL]
- Offset
Weapon Systems (WSDC) 5340-01-099-3414
DLA Procurement Analysis 5340-01-099-3414
- Last Stock Position:
- 1062 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-099-3414
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- CC
- Other Aircraft Categories
Multi-Application Aviation Spares
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- YW
- VEHICLES AND COMPONENTS ELECTRICAL VEHICULAR LIGHTS AND FIXTURES (FSC 6220) NONAIRBORNE
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-01-099-3414
Freight Information 5340-01-099-3414
5340-01-099-3414 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5340-01-099-3414 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 5340-01-099-3414 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-099-3414 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-099-3414 is not classified as a special type of cargo when transported by water. 5340-01-099-3414 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-099-3414
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.0" H x 4.0" W x 1.0" L
- --
- --
- Physical Protection
- Any Suitable Process
- 4.0" H x 4.0" W x 1.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5340-01-099-3414 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE5EJ19V1818
- 17 Dec 2018
- Subscribe
- 864
- Subscribe
- Subscribe
- Subscribe
- SPE5EK18P2714P00001
- 17 Sep 2018
- Subscribe
- 313
- Subscribe
- Subscribe
- Subscribe
- SPE5E116V2250
- 19 Apr 2016
- Subscribe
- 393
- Subscribe
- Subscribe
- Subscribe
- SPM5E113VA765
- 17 Sep 2013
- Subscribe
- 109
- Subscribe
- Subscribe
- Subscribe
- SPE5EK13V0442
- 15 Aug 2013
- Subscribe
- 497
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5340-01-099-3414 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- G
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
