5340-01-090-0641
Loop Clamp
5340010900641 010900641 768-12R
A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE. View more Loop Clamp
November 2023
3
Marketplace 5340-01-090-0641
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-090-0641 1+ Documents (More...)
/fsg-53/fsc-5340/us 5340-01-090-0641 Loop Clamp 5340010900641 010900641,768-12R Updated Every Day 5340
-01-090-0641 RQST NE Updated Every Day 5340-01-090-0641 RQST Updated Every Day 5340-01-090-0641 RQST
Restrictions 5340-01-090-0641
5340-01-090-0641 is a Loop Clamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-01-090-0641
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CL
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
Approved Sources 5340-01-090-0641
- Part Number
- Manufacturer
- Status
- 768-12R
- Manufacturer
- 81982 - Hydro-Aire Aerospace Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-090-0641
- Characteristic
- Specifications
- FIIG
- Specifications
- A12700
- Distance From Loop Center To Tongue End [AZDC]
- 1.015 Inches Minimum And 1.047 Inches Maximum
- Center To Center Distance Between First And Second Holes [AKZC]
- 0.620 Inches Minimum And 0.630 Inches Maximum
- Center To Center Distance Between Loop And Mounting Hole [AZCY]
- 0.765 Inches Minimum And 0.797 Inches Maximum
- Center To Center Distance Between Loop And Lug Hole [AZDE]
- 0.796 Inches Minimum And 0.828 Inches Maximum
- Diameter [ABMZ]
- 0.189 Inches Minimum And 0.209 Inches Maximum
- Fastening Device Type [AXWJ]
- Lug
- Material Document And Classification [MDCL]
- Qq-A-250/5 Fed Spec Single Material Response Band
- Material Thickness [ABPX]
- 0.048 Inches Minimum And 0.054 Inches Maximum
- Material [MATT]
- Aluminum Alloy 2024 Band
- Material [MATT]
- Rubber Cushion
- Loop Inside Diameter [BZTN]
- 0.734 Inches Minimum And 0.766 Inches Maximum
- Lug Hole Diameter [BZTQ]
- 0.189 Inches Minimum And 0.209 Inches Maximum
- Lug Width [AHMM]
- 1.265 Inches Minimum And 1.497 Inches Maximum
- Material Diameter [AJRB]
- 0.048 Inches Minimum And 0.054 Inches Maximum
- Overall Width [ABMK]
- 0.620 Inches Nominal
- Tongue Hole Type [AAAL]
- Round, Unthreaded

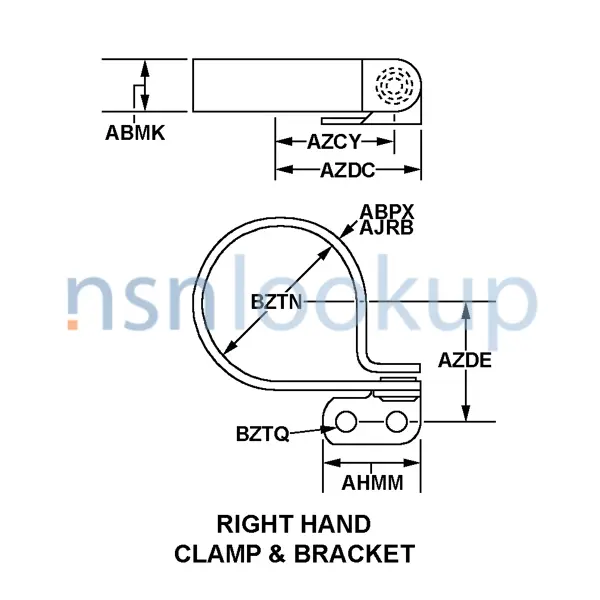

- Style Designator [STYL]
- Right Hand Clamp & Bracket
Weapon Systems (WSDC) 5340-01-090-0641
DLA Procurement Analysis 5340-01-090-0641
- Last Stock Position:
- 20 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-090-0641
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- SB
- Surveillance Target Acquisition and Night Observation (STANO)
Lighting Kit, Motion Detector (LKMD) AN/GAR-2
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5340-01-090-0641
Freight Information 5340-01-090-0641
5340-01-090-0641 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093880. A Sub NMFC of X. It has a NMFC Description of CATCHES/LATCHES METAL NOI. 5340-01-090-0641 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 5340-01-090-0641 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 49120 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-090-0641 is not classified as a special type of cargo when transported by water. 5340-01-090-0641 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-090-0641
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5340-01-090-0641 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
