5340-01-083-8952
Rod End Connector
5340010838952 010838952 2775623-101
An item which has one end designed to form a rigid connection on a rod, shaft, turnbuckle or the like by means of welding, threading and/or pinning. The opposite end provides a hinged or semirigid method of fastening or attaching to another part by means of a protruding tongue or block. May include provisions for locking. See also CLEVIS, ROD END and ROD END, THREADED. For items specifically designed for aviation, see CONNECTOR, ROD END, AVIATION. View more Rod End Connector
June 2023
4
Marketplace 5340-01-083-8952
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-083-8952 1+ Documents (More...)
United States (US) 4. 5340-01-083-8952 Marketplace Restrictions Approved Sources Datasheet Management
,ROD END 1 EA NS Request Quotation Updated Every Day 5340-01-083-8952 RQST NE Updated Every Day 5340-
Restrictions 5340-01-083-8952
5340-01-083-8952 is a Rod End Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-083-8952
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 5340-01-083-8952
- Part Number
- Manufacturer
- Status
- 2775623-101
- Manufacturer
- 92003 - Parker Hannifin Corporation Div (Active)
- Primary Buy
- Primary Buy

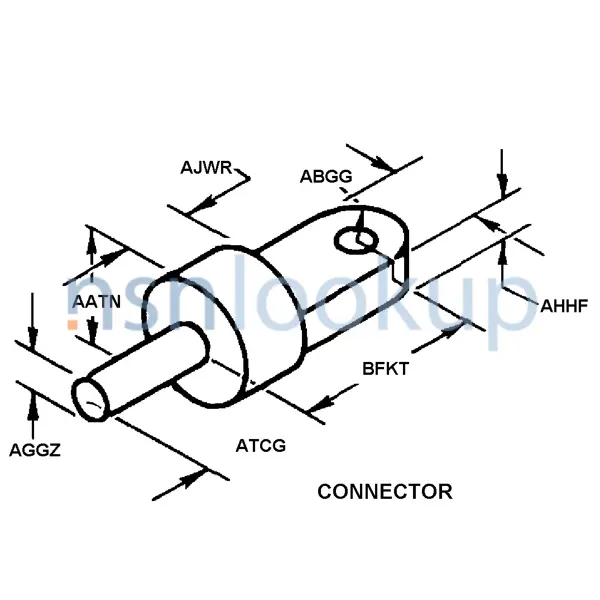

Datasheet 5340-01-083-8952
- Characteristic
- Specifications
- FIIG
- Specifications
- A264A0
- Distance From End To Hole Center [BFKT]
- 0.995 Inches Minimum And 1.005 Inches Maximum
- Body Overall Diameter [AZTN]
- 0.650 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-S-763,Class 300 Series Fed Spec Single Material Response Overall
- Nominal Thread Size [CQJX]
- 0.190 Inches Rod Connection
- Material [MATT]
- Steel Overall
- Radius [ABGG]
- 0.250 Inches Minimum And 0.252 Inches Maximum
- Shank Outside Diameter [AGGZ]
- 0.374 Inches Minimum And 0.376 Inches Maximum
- Shank Overall Length [ATCG]
- 2.208 Inches Nominal
- Shoulder Length [AJWR]
- 0.100 Inches Nominal
- Tongue Thickness [AHHF]
- 0.250 Inches Nominal
- Tongue Width [AHHE]
- 0.323 Inches Nominal
- Style Designator [STYL]
- Connector
- Surface Treatment Document And Classification [STDC]
- Mil-S-5002 Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Class [AAJD]
- 3B Rod Connection
- Thread Direction [AAJF]
- Right-Hand Rod Connection
- Thread Length [AASA]
- 0.660 Inches Nominal Rod Connection
- Thread Series Designator [THSD]
- Unf Rod Connection
Weapon Systems (WSDC) 5340-01-083-8952
DLA Procurement Analysis 5340-01-083-8952
Management Data 5340-01-083-8952
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5340-01-083-8952
Freight Information 5340-01-083-8952
5340-01-083-8952 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 128400. A Sub NMFC of A. It has a NMFC Description of RODS CONTROL W/W/O HOUSINGS SUB1. 5340-01-083-8952 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 65030 which rates the freight between FCL and LCL. 5340-01-083-8952 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-083-8952 is not classified as a special type of cargo when transported by water. 5340-01-083-8952 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-083-8952
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5340-01-083-8952 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
