5340-01-074-8972
Rod End Connector
5340010748972 010748972 12274114
An item which has one end designed to form a rigid connection on a rod, shaft, turnbuckle or the like by means of welding, threading and/or pinning. The opposite end provides a hinged or semirigid method of fastening or attaching to another part by means of a protruding tongue or block. May include provisions for locking. See also CLEVIS, ROD END and ROD END, THREADED. For items specifically designed for aviation, see CONNECTOR, ROD END, AVIATION. View more Rod End Connector
November 2023
4
Marketplace 5340-01-074-8972
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-074-8972 1+ Documents (More...)
CONNECTOR,ROD END 4 EA NS Request Quotation Subscribe to View Vendor Details... 5340-01-074-8972
CONNECTOR,ROD END 4 EA NS Request Quotation Updated Every Day 5340-01-074-8972 RQST NE Updated
Restrictions 5340-01-074-8972
5340-01-074-8972 is a Rod End Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-074-8972
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-074-8972
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBF
- US Marine Corps (MC47)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Australia (ZA01)
- Effective Date:
- 1 Mar 2005
Approved Sources 5340-01-074-8972
- Part Number
- Manufacturer
- Status
- 12274114
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-074-8972
- Characteristic
- Specifications
- FIIG
- Specifications
- A264A0

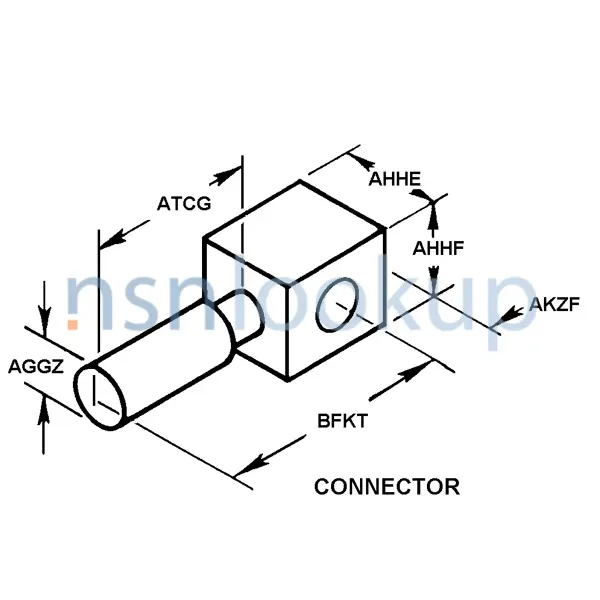

- Distance From End To Hole Center [BFKT]
- 2.880 Inches Nominal
- Distance From Pivot Pinhole Center To Tongue End [AKZF]
- 0.310 Inches Nominal
- Material [MATT]
- Steel Overall
- Shank Outside Diameter [AGGZ]
- 0.312 Inches Nominal
- Shank Overall Length [ATCG]
- 2.570 Inches Nominal
- Tongue Thickness [AHHF]
- 0.500 Inches Nominal
- Tongue Width [AHHE]
- 0.475 Inches Minimum And 0.480 Inches Maximum
- Style Designator [STYL]
- Connector
- Surface Treatment [SFTT]
- Cadmium Overall
