Rod End Clevis
5340010643159 010643159 3B1170B1
A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION. View more Rod End Clevis
January 2023
9
Marketplace 5340-01-064-3159
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-064-3159 1+ Documents (More...)
/fsg-53/fsc-5340/us
5340-01-064-3159 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-064-3159
Day 5340-01-064-3159 RQST NE Related Documents 5340-01-064-3159 1+ Documents ( More... ) https//www.nsnlookup.com
Restrictions 5340-01-064-3159
5340-01-064-3159 is a Rod End Clevis that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Approved Sources 5340-01-064-3159
- Part Number
- Manufacturer
- Status
- 3B1170B1
- Manufacturer
- 98296 - Standard Mfg Co Inc (Obsolete)
- Original Design
- Original Design
Datasheet 5340-01-064-3159
- Characteristic
- Specifications
- FIIG
- Specifications
- A264A0

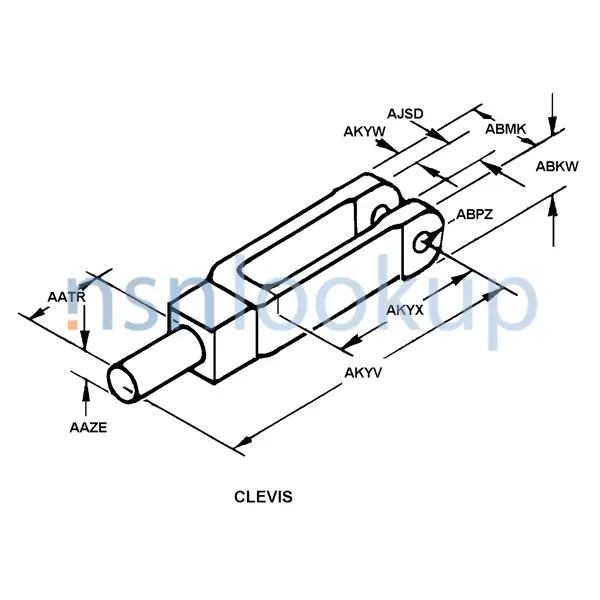

- Distance From Pivot Pinhole Center To Rod Connection End [AKYV]
- 3.125 Inches Nominal
- End Radius [ABPZ]
- 0.250 Inches Nominal
- Fork Depth [AKYX]
- 1.875 Inches Nominal
- Fork Span Width [AJSD]
- 0.156 Inches Nominal
- Fork Arm Thickness [AKYW]
- 0.172 Nominal Inches
- Nominal Thread Size [CQJX]
- 0.375 Inches Rod Connection
- Material [MATT]
- Steel Overall
- Shank Diameter [AAZE]
- 0.375 Inches Nominal
- Shank Length [AATR]
- 0.750 Inches Nominal
- Overall Height [ABKW]
- 0.500 Inches Nominal
- Overall Width [ABMK]
- 0.500 Inches Nominal
- Style Designator [STYL]
- Clevis
- Surface Treatment [SFTT]
- Cadmium Overall
- Thread Class [AAJD]
- 2A Rod Connection
- Thread Direction [AAJF]
- Right-Hand Rod Connection
- Thread Length [AASA]
- 0.688 Inches Nominal Rod Connection
- Thread Series Designator [THSD]
- Unf Rod Connection
Similar Supply Items to 5340-01-064-3159
Freight Information 5340-01-064-3159
5340-01-064-3159 has freight characteristics managed by France.. 5340-01-064-3159 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
