5340-01-054-1818
Expansion Shield
5340010541818 010541818 FF-S-325 4015-1
An item for inserting in a hole, usually in masonry, designed to be expanded either by means of a setting tool or by the insertion of the bolt, screw or nail for mounting or attaching another object. It may include the bolt, screw or nail. View more Expansion Shield
January 2023
7
Marketplace 5340-01-054-1818
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-054-1818 5+ Documents (More...)
(Identification) 1/3 NSN 5340-01-054-1818 (Identification) 2/3 NSN 5340-01-054-1818 (Identification
FF-S-325 SHIELD,EXPANSION 6 EA NS Request Quotation Updated Every Day 5340-01-054-1818 RQST NE Updated
FF-S-325 SHIELD,EXPANSION 1 BX NS Request Quotation Subscribe to View Vendor Details...
FF-S-325 SHIELD,EXPANSION 1 BX NS Request Quotation Subscribe to View Vendor Details...
FF-S-325 SHIELD,EXPANSION 1 BX NS Request Quotation Subscribe to View Vendor Details...
FF-S-325 SHIELD,EXPANSION 1 BX NS Request Quotation Subscribe to View Vendor Details...
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-054-1818 Expansion Shield 5340010541818 010541818
FF-S-325 SHIELD,EXPANSION 1 BX NS Request Quotation Subscribe to View Vendor Details...
FF-S-325 SHIELD,EXPANSION 6 EA NS Request Quotation Updated Every Day 97052A033 RQST NE Updated Every
FF-S-325 SHIELD,EXPANSION 1 BX NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5340-01-054-1818
5340-01-054-1818 is a Expansion Shield that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-01-054-1818
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-054-1818
- Saudi Arabia (YS01)
- Effective Date:
- 1 Feb 2015
Approved Sources 5340-01-054-1818
- Part Number
- Manufacturer
- Status
- 4015-1
- Manufacturer
- 78206 - Star Expansion Co (Active)
- Primary Buy
- Primary Buy
- FF-S-325
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5340-01-054-1818
- Characteristic
- Specifications
- FIIG
- Specifications
- A539J0
- Fastener Type [BBXW]
- Screw
- Features Provided [CBBL]
- Installation Setting Tool

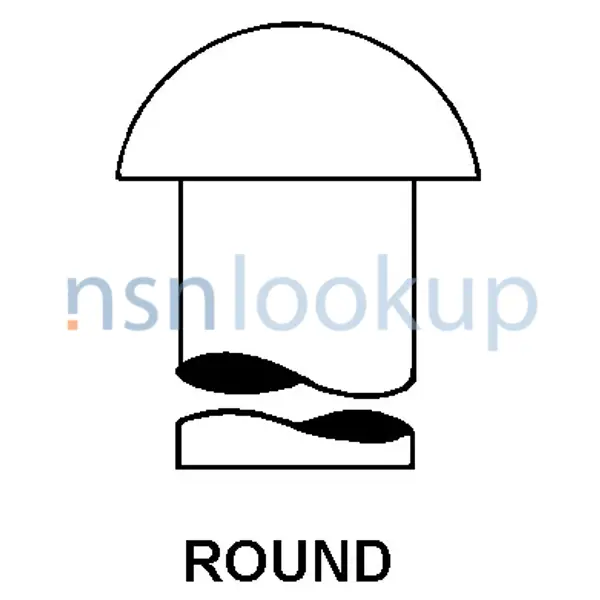

- Head Style [AASK]
- Round
- Hole Accommodation Diameter [AKRM]
- 0.500 Inches Nominal
- Material [MATT]
- Lead And Zinc Alloy
- Nominal Length [AKGG]
- 0.875 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Group And 1 Type And 1 Class
- Insert Size [BZGJ]
- 0.250-20 Unc 2B Thd
- Insert Type For Which Designed [BZGH]
- Machine Screw
- Recessed Drive Style [BZGF]
- Slot
- Safe Operating Load Rating [ALSC]
- 200.0 Pounds Nominal
- Overall Length [ABHP]
- 0.875 Inches Nominal
- Unit Quantity [BZGK]
- 1
- Style Designator [STYL]
- Single Expansion Machine Screw
- Thread Provision [AFEW]
- Threaded
Similar Supply Items to 5340-01-054-1818
Freight Information 5340-01-054-1818
5340-01-054-1818 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093410. A Sub NMFC of X. It has a NMFC Description of BOLT SHIELDS/ANCHORS EXPANSION NOI. 5340-01-054-1818 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48900 which rates the freight between FCL and LCL. 5340-01-054-1818 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-054-1818 is not classified as a special type of cargo when transported by water. 5340-01-054-1818 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-054-1818
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
