5340-01-047-9747

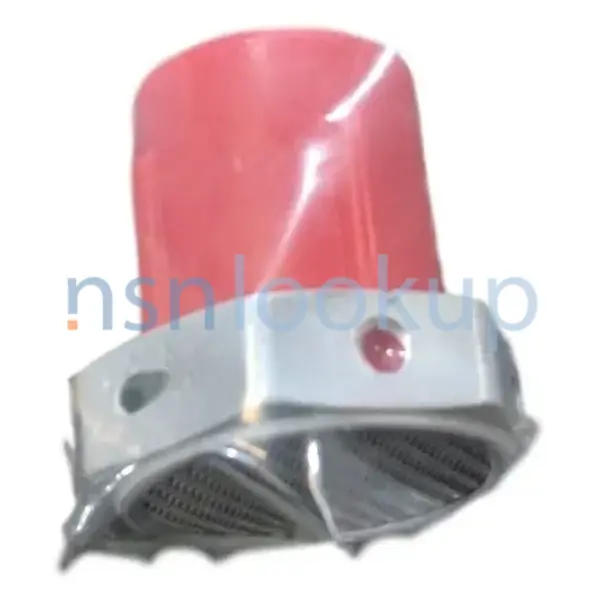

Vent Plug
5340010479747 010479747 20535A440 20535-A-4-40W
A ported item with or without external threads. The port(s) may contain a filtering disk or WIRE FABRIC. It is designed to be inserted into an opening in a cylinder, pump, regulator, valve, housing, casing, or the like, to permit the free flow of fluid from or to the atmosphere. Excludes BREATHER. View more Vent Plug
November 2023
5
Marketplace 5340-01-047-9747
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-047-9747 1+ Documents (More...)
Updated Every Day 5340-01-047-9747 RQST NE Related Documents 5340-01-047-9747 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-047-9747 Vent Plug 5340010479747 010479747,20535A440
Restrictions 5340-01-047-9747
5340-01-047-9747 is a Vent Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-01-047-9747
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-047-9747
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
Approved Sources 5340-01-047-9747
- Part Number
- Manufacturer
- Status
- 20535A440
- Manufacturer
- 18350 - Pall Aeropower Corporation (Active)
- Primary Buy
- Primary Buy
- 20535-A-4-40W
- 10989 - Pall Aeropower Corp Sub Of Pall Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-01-047-9747
- Characteristic
- Specifications
- FIIG
- Specifications
- A539T0
- End Connection Type [AWZY]
- Threaded
- Material Document And Classification [MDCL]
- Qq-A-225/4, Alloy 2014 Fed Spec Single Material Response Or Qq-A-225/6, Alloy 2024 Fed Spec Single Material Response Or Qq-A-225/9, Alloy 7075 Fed Spec Single Material Response
- Material [MATT]
- Aluminum Alloy Or Aluminum Alloy 2024 Or Aluminum Alloy 7075
- Outside Diameter [ABKV]
- 0.684 Inches Minimum And 0.692 Inches Maximum
- Inside Diameter [AARX]
- 0.171 Inches Nominal
- Length [ABRY]
- 0.438 Inches Nominal
- Refinement Device Type [BZND]
- Wire Fabric
- Refinement Medium Type [BZNC]
- Filtering
- Special Features [FEAT]
- Flats Width 0.364
- Vent Hole Quantity [BZNF]
- 1
- Vent Hole Shape [BZNG]
- Round
- Surface Treatment Document And Classification [STDC]
- Mil-A-8625 Mil Spec Single Treatment Response
- Surface Treatment [SFTT]
- Anodize
- Thread Class [AAJD]
- 3A
- Thread Length [AASA]
- 0.613 Inches Nominal
- Thread Size And Series/Type Designator [THDS]
- 0.438-20 Unf
Weapon Systems (WSDC) 5340-01-047-9747
DLA Procurement Analysis 5340-01-047-9747
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-047-9747
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-01-047-9747
Freight Information 5340-01-047-9747
5340-01-047-9747 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 197820. A Sub NMFC of Z. It has a NMFC Description of WIRE GOODS:CLOTH I/S NOI. 5340-01-047-9747 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 96965 which rates the freight between FCL and LCL. 5340-01-047-9747 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-047-9747 is not classified as a special type of cargo when transported by water. 5340-01-047-9747 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-047-9747
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5340-01-047-9747 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
