5340-01-047-8336
Helical Compression Spring Seat
5340010478336 010478336 8449305
A circular item, usually having a flat or grooved flange, boss(es), and/or counterbore designed to accommodate the end of the spring. It is used to position the spring, but does not encase the spring or restrain lateral motion. It may be used in conjunction with a RETAINER, HELICAL COMPRESSION SPRING. Excludes WASHER (1), (as modified); SEAT, BALL SOCKET and HOLDER, SPRING. See also ROTOR, ENGINE POPPET VALVE. View more Helical Compression Spring Seat
November 2023
14
Marketplace 5340-01-047-8336
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-047-8336 1+ Documents (More...)
Updated Every Day 5340-01-047-8336 RQST Updated Every Day 5340-01-047-8336 RQST NE Related Documents
5340-01-047-8336 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-047-8336
Restrictions 5340-01-047-8336
5340-01-047-8336 is a Helical Compression Spring Seat that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-047-8336
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-047-8336
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBF
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FXKZ
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Mar 1999
- Republic of Korea (ZH01)
- Effective Date:
- 1 Nov 1995
- Portugal (ZP01)
- Effective Date:
- 1 Mar 2014
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5340-01-047-8336
- Part Number
- Manufacturer
- Status
- 8449305
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-047-8336
- Characteristic
- Specifications
- FIIG
- Specifications
- T319-E

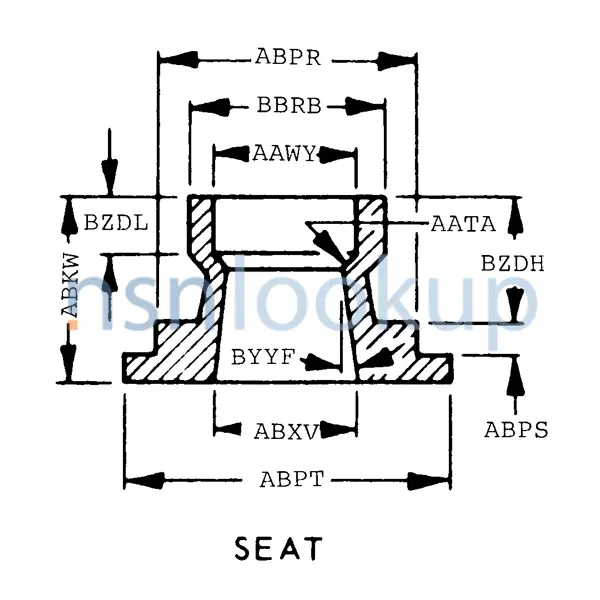

- Bore Diameter [ABXV]
