5340-01-047-4025

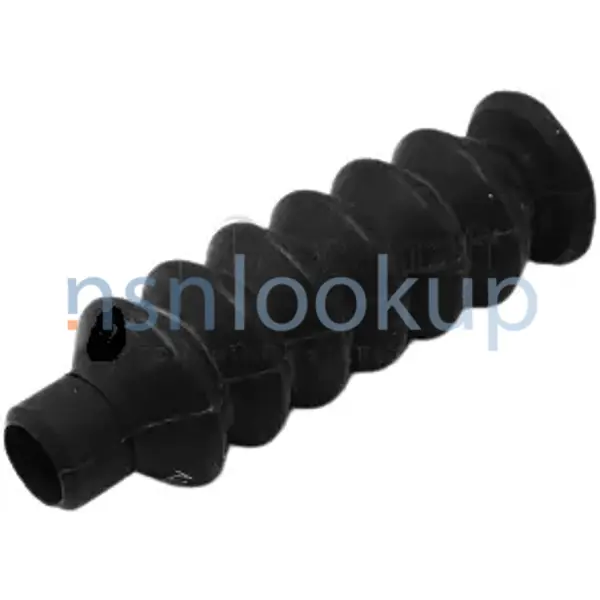

Dust And Moisture Seal Boot
5340010474025 010474025 4802-27
A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR. View more Dust And Moisture Seal Boot
November 2023
8
Marketplace 5340-01-047-4025
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-047-4025 5+ Documents (More...)
BOOT,DUST AND MOISTURE SEAL 99 EA NS Request Quotation Subscribe to View Vendor Details... 4802-27
Every Day 5340-01-047-4025 RQST Updated Every Day 5340-01-047-4025 RQST NE Related Documents 5340-01-
Restrictions 5340-01-047-4025
5340-01-047-4025 is a Dust And Moisture Seal Boot that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-01-047-4025
- US Air Force (FXGG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- FXCX
- France (ZF01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5340-01-047-4025
- Part Number
- Manufacturer
- Status
- 4802-27
- Manufacturer
- 29780 - Mag Aerospace Industries, Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-047-4025
- Characteristic
- Specifications
- FIIG
- Specifications
- A02000
- Body Height [ADAU]
- 6.124 Inches Nominal
- Body Outside Diameter [ADAR]
- 2.380 Inches Nominal
- Material Document And Classification [MDCL]
- Mil-S-6855,Class 2,Grade 50 Mil Spec Single Material Response Body
- Material Thickness [ABPX]
- 0.060 Inches Nominal
- Material [MATT]
- Rubber Synthetic Body
- Mounting Device Quantity [ACUP]
- 1 And 1
- Mounting Method [AXGY]
- Flange And Lip
- Opening Inside Diameter [BGKC]
- 0.690 Inches Nominal
- Overall Height [ABKW]
- 7.620 Inches Nominal
- Style Designator [STYL]
- Thru-Hole, Expandable
Weapon Systems (WSDC) 5340-01-047-4025
DLA Procurement Analysis 5340-01-047-4025
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-047-4025
Similar Supply Items to 5340-01-047-4025
Freight Information 5340-01-047-4025
5340-01-047-4025 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194090. A Sub NMFC of X. It has a NMFC Description of WASHERS/SEALS. 5340-01-047-4025 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5340-01-047-4025 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 5340-01-047-4025 is not classified as a special type of cargo when transported by water. 5340-01-047-4025 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-047-4025
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5340-01-047-4025 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- H
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
