5340-01-044-7068
Retaining Strap
5340010447068 010447068 8437019
A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING. View more Retaining Strap
August 2023
10
Marketplace 5340-01-044-7068
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-044-7068 2+ Documents (More...)
STRAP,RETAINING 78 EA NS Request Quotation Subscribe to View Vendor Details... 8437019 STRAP 2 EA NS
Request Quotation Updated Every Day 5340-01-044-7068 RQST NE Updated Every Day 5340-01-044-7068 RQST
-1 8436774 FN 23 8436774 FN 23D1 8437019-1D1 INC: 77777 Managed by United States NSN Created on 17 Sep
Retaining Strap 5340010447068 010447068 to View Vendor Details... 8437019 STRAP 2 EA NS https//
Restrictions 5340-01-044-7068
5340-01-044-7068 is a Retaining Strap that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-01-044-7068
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-044-7068
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5340-01-044-7068
- Part Number
- Manufacturer
- Status
- 8437019
- Manufacturer
- 19204 - Army, United States Department Of (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-044-7068
- Characteristic
- Specifications
- FIIG
- Specifications
- T372-A
- Bonding Strip Material [BXQH]
- Rubber
- Cushioning Material [ALTD]
- Rubber
- Cushion [BXQG]
- Included
- Distance Between Base And Inside Of Arch [BYMM]
- 3.160 Inches Minimum And 3.220 Inches Maximum
- Material Thickness [ABPX]
- 0.063 Inches Nominal
- Material [MATT]
- Aluminum Alloy 5052
- Mounting Hole Size [BYML]
- 0.170 Inches Minimum And 0.200 Inches Maximum
- Mounting Pad [BXQJ]
- Included
- Inside Diameter/Arch Length [BYMP]
- 3.970 Inches Minimum And 4.030 Inches Maximum
- Overall Length [ABHP]
- 4.650 Inches Minimum And 4.710 Inches Maximum
- Overall Width [ABMK]
- 0.600 Inches Minimum And 0.640 Inches Maximum
- Special Features [FEAT]
- End Of Arch Protruding Portion Is180 Degree Difference From Styl 3

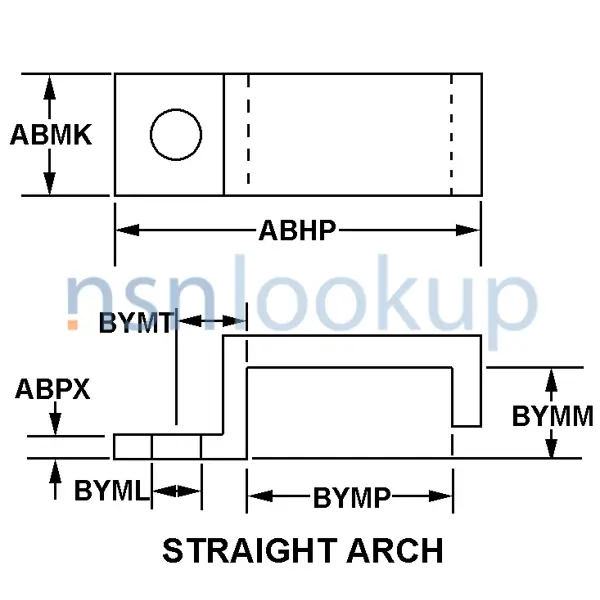

- Style Designator [STYL]
- Straight Arch
- Surface Treatment [SFTT]
- Anodize
DLA Procurement Analysis 5340-01-044-7068
Management Data 5340-01-044-7068
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5340-01-044-7068
Freight Information 5340-01-044-7068
5340-01-044-7068 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 157170. A Sub NMFC of X. It has a NMFC Description of PLASTIC/RUBR STRAPS/ROPE/CORD/STRIP. 5340-01-044-7068 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 88195 which rates the freight between FCL and LCL. 5340-01-044-7068 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-044-7068 is not classified as a special type of cargo when transported by water. 5340-01-044-7068 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-01-044-7068
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- No Requirement
- Not Applicable
- MIL-DTL-117, Type II, Class E, Style 1, Light Duty, Watervaporproof, Greaseproof, Opaque Bag
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5340-01-044-7068 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
