5340-01-034-5222
Clamp Bolt Assembly
5340010345222 010345222 121102 SWING BOLT SWING EYE BOLT/PIN-TYPE 316 BU9500CGY6EYEBOLT
A threaded item having an eye on one end designed to accommodate a hinge pin, or a pin inserted at right angles to the shank. It must have an adjusting nut assembled on the threads. The end of the threads may be headed, or a cap nut or similar device attached to prevent disassembly of the adjusting nut. It may also have a washer, collar or retainer assembled between the nut and hinge mounted end. Includes items having a bracket or lug mounting. It is used to rigidly clamp items to a structure, instrument, or the like. View more Clamp Bolt Assembly
January 2023
7
Marketplace 5340-01-034-5222
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-034-5222 1+ Documents (More...)
RQST NE Updated Every Day 5340-01-034-5222 RQST Updated Every Day 5340-01-034-5222 RQST NE Related Documents
5340-01-034-5222 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-034-5222
Restrictions 5340-01-034-5222
5340-01-034-5222 is a Clamp Bolt Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-034-5222
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-034-5222
- US Coast Guard (C056)
- Effective Date:
- 1 Apr 1991
Approved Sources 5340-01-034-5222
- Part Number
- Manufacturer
- Status
- 121102 SWING BOLT
- Manufacturer
- 822Y1 - Dhs, Uscg Shore Infrastructure (Active)
- Primary Buy
- Primary Buy
- SWING EYE BOLT/PIN-TYPE 316
- 9A589 - Edsal Machine Products Inc (Active)
- Secondary Buy
- Secondary Buy
- SWING EYE BOLT/PIN-TYPE 316
- 7A078 - Esco Fasteners Co Inc (Active)
- Secondary Buy
- Secondary Buy
- BU9500CGY6EYEBOLT
- 0R6M6 - United States Coast Guard Hq Ocean (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-01-034-5222
- Characteristic
- Specifications
- FIIG
- Specifications
- A03100
- Material [MATT]
- Steel Bolt
- Material [MATT]
- Steel Spring
- Material [MATT]
- Steel Washer
- Material Document And Classification [MDCL]
- Qq-S-763 Fed Spec Single Material Response Bolt
- Material Document And Classification [MDCL]
- Qq-S-763 Fed Spec Single Material Response Spring
- Material Document And Classification [MDCL]
- Qq-S-763 Fed Spec Single Material Response Washer

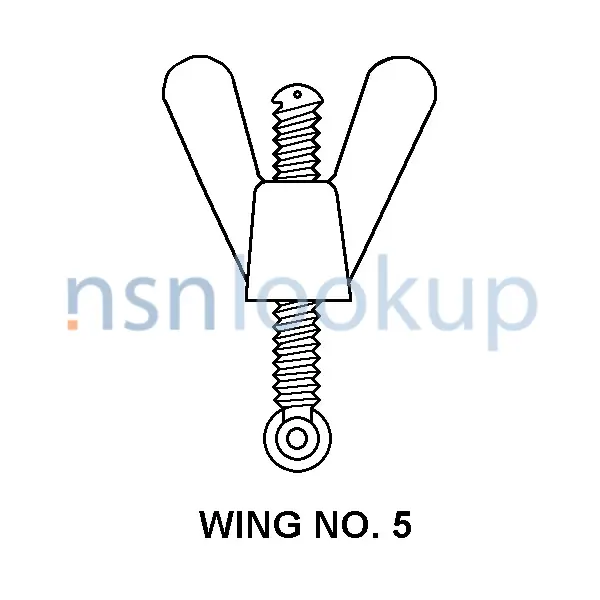

- Style Designator [STYL]
- Wing No. 5
- Mounting Method [AXGY]
- Pin
- Mounting Facility Diameter [CLMQ]
- 0.875 Inches Nominal
- Thread Series Designator [THSD]
- Unc
- Nominal Thread Size [CQJX]
- 0.750 Inches
- Thread Quantity Per Inch [CMLP]
- 10
- Thread Class [AAJD]
- 1A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 2.500 Inches Nominal
Management Data 5340-01-034-5222
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Dec 2012
- US Coast Guard (GP)
- AY
- Subscribe
- 1
- AY
Coast Guard
- Inventory Activity:
- S
- Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required
- Serial Number Control:
- 0
- Item not controlled by serial number
- Material Control:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 5340-01-034-5222
Freight Information 5340-01-034-5222
5340-01-034-5222 has freight characteristics.. 5340-01-034-5222 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
