5340-01-033-4458
Door Handle
5340010334458 010334458 12252236
A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB. View more Door Handle
January 2023
11
Marketplace 5340-01-033-4458
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-033-4458 1+ Documents (More...)
(Identification) 1/2 NSN 5340-01-033-4458 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5340-01-033-4458 RQST Updated Every Day 5340-01-033-4458 RQST NE Related
Restrictions 5340-01-033-4458
5340-01-033-4458 is a Door Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-033-4458
- Spain (YB01)
- Effective Date:
- 1 Jan 2001
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Apr 2002
Approved Sources 5340-01-033-4458
- Part Number
- Manufacturer
- Status
- 12252236
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-033-4458
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Accommodated Shaft Diameter [ABVM]
- 0.438 Inches Nominal
- Handle Clearance [ALMZ]
- 0.630 Inches Nominal
- Handle Height [AGES]
- 2.130 Inches Nominal
- Head Diameter [AASL]
- 0.281 Inches Nominal
- Shaft Accommodation Style [ABHH]
- Round
- Overall Length [ABHP]
- 2.781 Inches Nominal
- Special Features [FEAT]
- Pin Is 0.188 Dia X 1.250 Lg; It Projects 0.880 From Handle Base Coaxialwith Shaft Accommodation; Shaft Accommodation 0.560 Deep W/0.125 Dia Hole Cross-Drilled 0.250 From Base

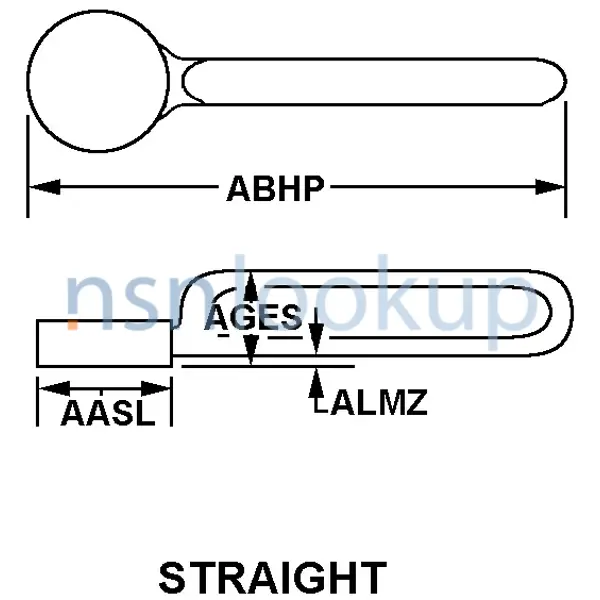

- Style Designator [STYL]
- Straight
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Pin
- Surface Treatment Document And Classification [STDC]
- Tt-P-636 Fed Spec Single Treatment Response Ball
- Surface Treatment [SFTT]
- Passivate Pin
- Surface Treatment [SFTT]
- Primer Ball
Similar Supply Items to 5340-01-033-4458
Freight Information 5340-01-033-4458
5340-01-033-4458 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095142. A Sub NMFC of X. It has a NMFC Description of HARDWARE HANDLES,IRON/STEEL. 5340-01-033-4458 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 5340-01-033-4458 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 48490 which rates the freight between FCL and LCL. 5340-01-033-4458 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-033-4458 is not classified as a special type of cargo when transported by water. 5340-01-033-4458 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
