5340-01-021-9461
Handwheel
5340010219461 010219461 E25030
An item having a major diameter of 3 or more inches (76.2mm) other than items having spoked or sumulated spoked construction, which may be under 3 inches (76.2mm) designed to be gripped by the hand to transmit rotary motion to other devices through a center axis, fabricated in the form of a solid body with simulated spokes or a recessed surface between the rim and the hub, or it may be built up in the form of a frame having a central hub connected to the rim by the spokes. It may have reference markings in the form of dots, arrows, hairline, etc., to indicate the relative position and/or direction of rotation of the item(s) with which it is used. It may also include an integral ratchet device. For similar items having a maximum diameter of less than 3 inches (76.2mm), see KNOB. For items calibrated in units or series of divisions denoting relative positioning of associated devices, see DIAL (as modified). Excludes STEERING WHEEL. View more Handwheel
May 2023
2
Marketplace 5340-01-021-9461
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-021-9461 2+ Documents (More...)
Updated Every Day 5340-01-021-9461 RQST NE Related Documents 5340-01-021-9461 2+ Documents ( More...
) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-021-9461 Handwheel 5340010219461010219461,E25030
https//www.nsnlookup.com /fsg-53/fsc-5365/de 5365-12-174-0386 Machine Thread Bushing 5365121740386,E25030
Handwheel 5340010219461 010219461,E25030 Upgrade for $1 a day Upgrade your Account Upgrade 5340
Restrictions 5340-01-021-9461
5340-01-021-9461 is a Handwheel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-01-021-9461
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-021-9461
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
Approved Sources 5340-01-021-9461
- Part Number
- Manufacturer
- Status
- E25030
- Manufacturer
- 48422 - William Powell Company, The (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-021-9461
- Characteristic
- Specifications
- FIIG
- Specifications
- A25300
- Material And Location [ANNQ]
- Iron Overall
- Surface Treatment And Location [ANNR]
- Cadmium Overall
- Color And Location [AWJT]
- Blue Overall

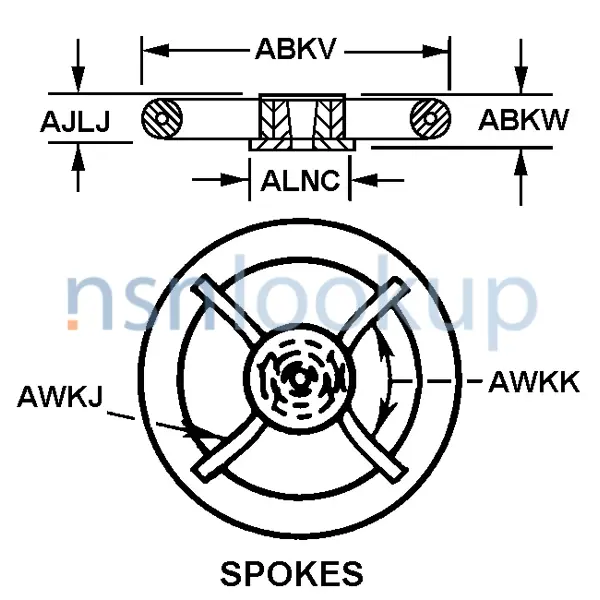

- Handwheel Style [AWJX]
- Spokes
- Outside Diameter [ABKV]
- 6.000 Inches Nominal
- Overall Height [ABKW]
- 0.969 Inches Nominal
- Hub Length [AJLJ]
- 0.766 Inches Nominal
- Hub Outside Diameter [ALNC]
- 0.812 Inches Nominal
- Spoke Angle In Deg [AWKK]
- 90.0
- Spoke Quantity [AWKJ]
- 4
- Drive Facility Style [AWJY]
- Single Keyway
- Inside Diameter [AARX]
- 1.188 Inches Nominal
- Keyway Width [ABRR]
- 0.188 Inches Nominal
- Keyway Depth [ABRV]
- 0.094 Inches Nominal
- Handle Rotating Feature [AWKD]
- Not Included
- Handle Counterbalancing Weight [AWKE]
- Not Included
- Ratchet [AWKF]
- Not Included
DLA Procurement Analysis 5340-01-021-9461
Management Data 5340-01-021-9461
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- X
- Formerly 4820
- X
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-01-021-9461
Freight Information 5340-01-021-9461
5340-01-021-9461 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5340-01-021-9461 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-021-9461 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-021-9461 is not classified as a special type of cargo when transported by water. 5340-01-021-9461 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5340-01-021-9461 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
