5340-00-997-4448
Hand Crank
5340009974448 009974448 B286 H10
An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR. View more Hand Crank
November 2023
12
Marketplace 5340-00-997-4448
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-997-4448 5+ Documents (More...)
(Identification) 1/4 NSN 5340-00-997-4448 (Identification) 2/4 NSN 5340-00-997-4448 (Identification
/fsg-53/fsc-5340/us 5340-00-997-4448 Hand Crank 5340009974448009974448,B286,H10 B286H10 An item consisting
-2401 RQST NE Restrictions B286 $1 RQST Updated Every Day 8465-21-872-2401 RQST NE Restrictions B286
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-997-4448 Hand Crank 5340009974448 009974448,B286
Hand Crank 5340009974448 009974448,B286,H10 Upgrade for $1 a day Upgrade your Account Upgrade 5340
-00-997-4448Hand Crank5340009974448 009974448 B286 Test Lead 6625005672686005672686,D111-59 for $1 a
JavaScript in your web browser . 6150-12-324-0965Electrical Lead6150123240965 123240965G32960-V0081-B286
JavaScript in your web browser . 6150-12-324-0965Electrical Lead6150123240965 123240965G32960-V0081-B286
Restrictions 5340-00-997-4448
5340-00-997-4448 is a Hand Crank that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-00-997-4448
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-997-4448
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
Approved Sources 5340-00-997-4448
- Part Number
- Manufacturer
- Status
- B286
- Manufacturer
- 1NH57 - Arcosa Marine Components, Llc (Active)
- Primary Buy
- Primary Buy
- H10
- 55895 - Buske E R Mfg Co Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- H10
- 06550 - Ingersoll-Rand Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-00-997-4448
- Characteristic
- Specifications
- FIIG
- Specifications
- A25300
- Material And Location [ANNQ]
- Steel Overall
- Color And Location [AWJT]
- Red Handle
- Arm Style [AWJW]
- Offset
- Offset Height [AJAT]
- 2.500 Inches Nominal
- Crank Throw Length [AWKG]
- 18.000 Inches Nominal

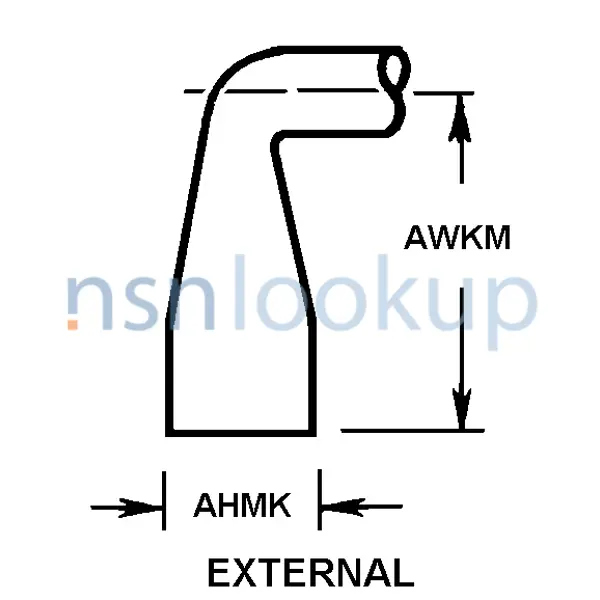

- Drive End Style [AJFW]
- External
- Length From End To Arm Center [AWKM]
- 6.250 Inches Nominal

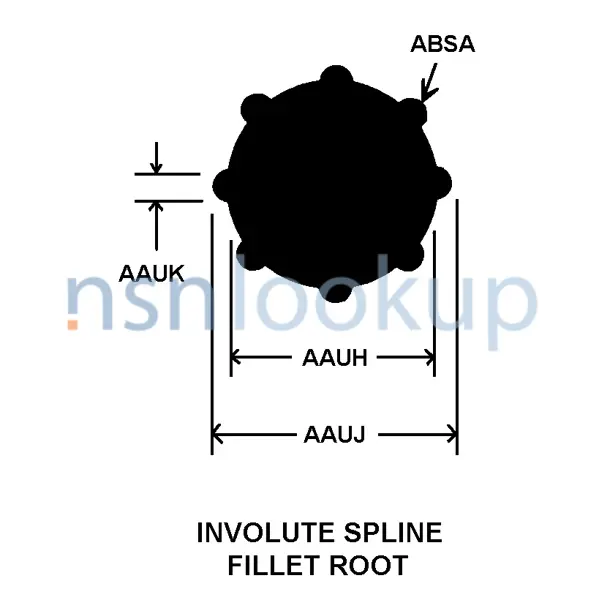

- Drive Facility Style [AWJY]
- Involute Spline Fillet Root
- Spline Minor Diameter [AAUH]
- 1.750 Inches Nominal
- Spline Major Diameter [AAUJ]
- 2.500 Inches Nominal
- Spline Width [AAUK]
- 0.375 Inches Nominal
- Overall Depth [ABFY]
- 1.375 Inches Nominal
- Spline Quantity [ABSA]
- 10
- Crank Overall Length [AWKA]
- 21.000 Inches Nominal
- Handle Mounting Method [AWKC]
- Integral
- Handle Style [ALMP]
- Round
- Handle Length [AASN]
- 9.000 Inches Nominal
- Handle Rotating Feature [AWKD]
- Included
- Ratchet [AWKF]
- Not Included
Weapon Systems (WSDC) 5340-00-997-4448
DLA Procurement Analysis 5340-00-997-4448
- Last Stock Position:
- 14 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-00-997-4448
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 3950
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 3950
- X
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-00-997-4448
Freight Information 5340-00-997-4448
5340-00-997-4448 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-00-997-4448 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-00-997-4448 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-00-997-4448 is not classified as a special type of cargo when transported by water. 5340-00-997-4448 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-997-4448
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5340-00-997-4448 1 Records
Contracting Technical Data File (CTDF) 5340-00-997-4448 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
