5340-00-992-8044
Door Handle
5340009928044 009928044 2D1121-1194-1
A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB. View more Door Handle
May 2023
6
Marketplace 5340-00-992-8044
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-992-8044 3+ Documents (More...)
Updated Every Day 5340-00-992-8044 RQST NE Related Documents 5340-00-992-8044 3+ Documents ( More...
FedMall Updated Every Day 5340-00-992-8044 RQST NE Updated Every Day 5340-00-992-8044 RQST Updated Every
RQST NE Updated Every Day 6930-01-045-0922 RQST https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-992-8044
Door Handle 5340009928044 009928044 Upgrade for $1 a day Upgrade your Account Upgrade 5340-00-992
Door Handle 5340009928044 009928044 Documents 5340-00-992-8044 2+ Documents ( More... ) https//
(DF)FFWhen Exhausted Use 5340-00-992-8044Department of the Air Force (DF)IZDiscontinued-Use 5340-00-992-8044
Restrictions 5340-00-992-8044
5340-00-992-8044 is a Door Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-00-992-8044
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FXKZ
Approved Sources 5340-00-992-8044
- Part Number
- Manufacturer
- Status
- 2D1121-1194-1
- Manufacturer
- 5S058 - Trident Automotive Inc (Replaced)
- Original Design
- Original Design
Datasheet 5340-00-992-8044
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Material [MATT]
- Aluminum Overall
- Surface Treatment [SFTT]
- Anodize Overall
- Color [HUES]
- Red Overall

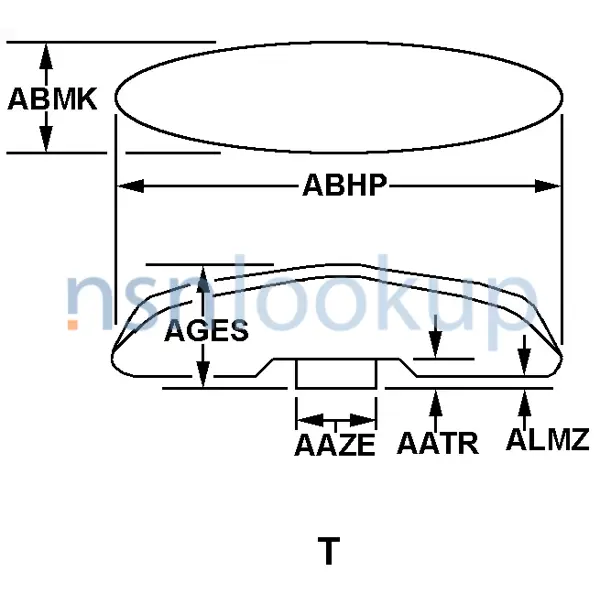

- Style Designator [STYL]
- T
- Shank Length [AATR]
- 1.125 Inches Nominal
- Shank Diameter [AAZE]
- 0.625 Inches Nominal
- Overall Length [ABHP]
- 2.125 Inches Nominal
- Overall Width [ABMK]
- 0.750 Inches Nominal
- Handle Height [AGES]
- 1.500 Inches Nominal
- Handle Clearance [ALMZ]
- 1.125 Inches Nominal
- Mounting Facility Quantity [AKPV]
- 1
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 0.375 Inches Nominal
Weapon Systems (WSDC) 5340-00-992-8044
DLA Procurement Analysis 5340-00-992-8044
Management Data 5340-00-992-8044
Similar Supply Items to 5340-00-992-8044
Freight Information 5340-00-992-8044
5340-00-992-8044 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095142. A Sub NMFC of X. It has a NMFC Description of HARDWARE HANDLES,IRON/STEEL. 5340-00-992-8044 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48490 which rates the freight between FCL and LCL. 5340-00-992-8044 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-00-992-8044 is not classified as a special type of cargo when transported by water. 5340-00-992-8044 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-992-8044
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Container
Contracting Technical Data File (CTDF) 5340-00-992-8044 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
