5340-00-987-8829
Dust And Moisture Seal Boot
5340009878829 009878829 MIL-DTL-5423/9 324331-1 N9033-1-4 617882-9 334-1272-000 334-1272-00 C5-15-4866 13225E8794 104313 M5423/9-2 302-009098 1332-11
A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR. View more Dust And Moisture Seal Boot
November 2023
41
Marketplace 5340-00-987-8829
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5340-00-987-8829 5+ Documents (More...)
/9-2 302-009098 1332-11 A flexible, nonmetallic item designed to prevent entry of dust, moisture and
NE Updated Every Day 5340-00-987-8829 RQST Updated Every Day 5340-00-987-8829 RQST NE Related Documents
104313-3 500-16 PREST0LE500-16 516 10552 P10552S PM A preformed item of semirigid material designed
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-987-8829 Dust And Moisture Seal Boot 5340009878829
www.nsnlookup.com /fsg-51/fsc-5140/fr 5140-14-230-0103 Tools And Accessories Roll 5140142300103 MIL-DTL-5423/9
fsc-5140/fr 5140-14-230-0103 Tools And Accessories Roll 5140142300103 5930008230482 008230482 MIL-DTL-5423/9
Dust And Moisture Seal Boot 5340009878829 5340-00-987-8829Dust And Moisture Seal Boot5340009878829
009878829 MIL-DTL-5423/9 C5-15-4866 324331-1 N9033 Subscribe to View Vendor Details... 617882-9 BOOT
Dust And Moisture Seal Boot 5340009878829 5340-00-987-8829Dust And Moisture Seal Boot5340009878829
009878829 MIL-DTL-5423/9 C5-15-4866 324331-1 N9033 Subscribe to View Vendor Details... 617882-9 BOOT
Restrictions 5340-00-987-8829
5340-00-987-8829 is a Dust And Moisture Seal Boot that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-00-987-8829
- US Army (A918)
- Effective Date:
- 1 May 2005
- Supplementary Receivers:
- CT
- US Coast Guard (C911)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- C006
- US Marine Corps (MC41)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- MC04
- US Navy (N9BG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTKEJBHD
- Poland (WP01)
- Effective Date:
- 1 Feb 2006
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5340-00-987-8829
- Part Number
- Manufacturer
- Status
- M5423/9-2
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-5423/9
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 324331-1
- 80020 - Naval Air Warfare Center Aircraft (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- N9033-1-4
- 97539 - Apm Hexseal Corp (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 617882-9
- 80020 - Naval Air Warfare Center Aircraft (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 334-1272-000
- 13499 - Rockwell Collins, Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 334-1272-000
- 95105 - Rockwell Collins, Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 334-1272-00
- 95105 - Rockwell Collins, Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- C5-15-4866
- 81361 - Edgewood Chemical Biological Center (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 13225E8794
- 97403 - Cecom Lr Center (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 302-009098
- U4338 - Thales Uk Limited Dba Thales Uk Ltd (Active)
- Secondary Buy
- Secondary Buy
- 1332-11
- 97539 - Apm Hexseal Corp (Active)
- Secondary Buy
- Secondary Buy
- 104313
- 06351 - Microwave Engineering Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5340-00-987-8829
- Characteristic
- Specifications
- FIIG
- Specifications
- A02000
- Base Thread Location [CSFT]
- Internal
- Hazardous Locations/Environmental Protection [ABFE]
- Dustproof-Nema Type 13 And Moisture Proof
- Material [MATT]
- Rubber Silicone Body And Steel Body
- Mounting Method [AXGY]
- Thread
- Nominal Thread Size [CQJX]
- 0.375 Inches
- Opening Inside Diameter [BGKC]
- 0.250 Inches Nominal
- Sealing Method [ACUW]
- Compression
- Overall Height [ABKW]
- 0.359 Inches Nominal
- Width Across Flats [ASDB]
- 0.500 Inches Nominal

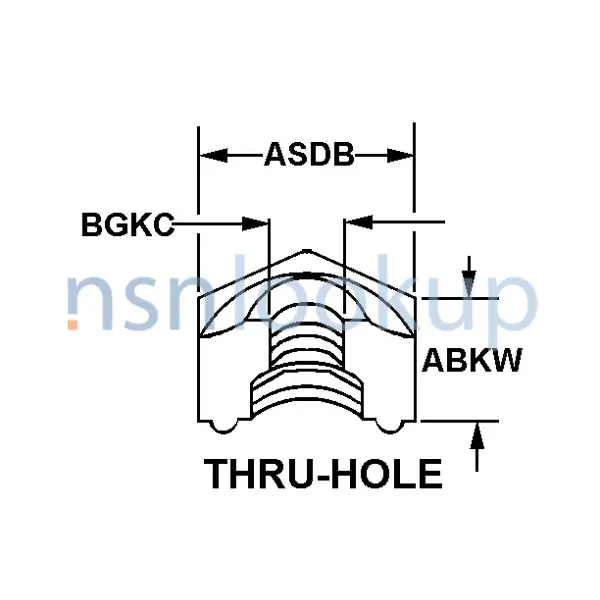

- Style Designator [STYL]
- Thru-Hole
- Thread Class [AAJD]
- 2B
- Thread Length [AASA]
- 0.312 Inches Nominal
- Thread Series [BZRR]
- Unef
- Thread Quantity Per Inch [CMLP]
- 32
Weapon Systems (WSDC) 5340-00-987-8829
DLA Procurement Analysis 5340-00-987-8829
- Last Stock Position:
- 492 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-00-987-8829
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 6
- Critical Repair Part to a Non-Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- T
- Maintenance Float Secondary Non-depot Reparables
- Operational Test:
- 0
NATO Stock Numbers Related to 5340-00-987-8829
Freight Information 5340-00-987-8829
5340-00-987-8829 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194090. A Sub NMFC of X. It has a NMFC Description of WASHERS/SEALS. 5340-00-987-8829 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5340-00-987-8829 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 5340-00-987-8829 is not classified as a special type of cargo when transported by water. 5340-00-987-8829 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-987-8829
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5340-00-987-8829 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
