5340-00-953-9334
Retaining Band
5340009539334 009539334 10919347
A flexible or semiflexible metal strip designed to partially surround and retain an item against a structure, frame, bracket, or the like. Includes a single segment of a sectioned type CLAMP, LOOP or CLAMP, HOSE. Both ends may have, but one end must have, a loop to accommodate a hinge pin, or a stud welded to the end of the band. May be furnished with a trunnion, T-bolt, pin, latch, or the like. For items designed to completely surround an object(s), see CLAMP, LOOP. See also COVER, ACCESS and STRAP, RETAINING. View more Retaining Band
January 2023
16
Marketplace 5340-00-953-9334
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-953-9334 1+ Documents (More...)
/fsg-53/fsc-5340/us
United States (US) 4. 5340-00-953-9334 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5340-00-953-9334 RQST Updated Every Day 5340-00-953-9334 RQST NE Related Documents
Restrictions 5340-00-953-9334
5340-00-953-9334 is a Retaining Band that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-00-953-9334
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5340-00-953-9334
- Part Number
- Manufacturer
- Status
- 10919347
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-00-953-9334
- Characteristic
- Specifications
- FIIG
- Specifications
- T372-J
- Basic Shape Style [AGTA]
- Flat

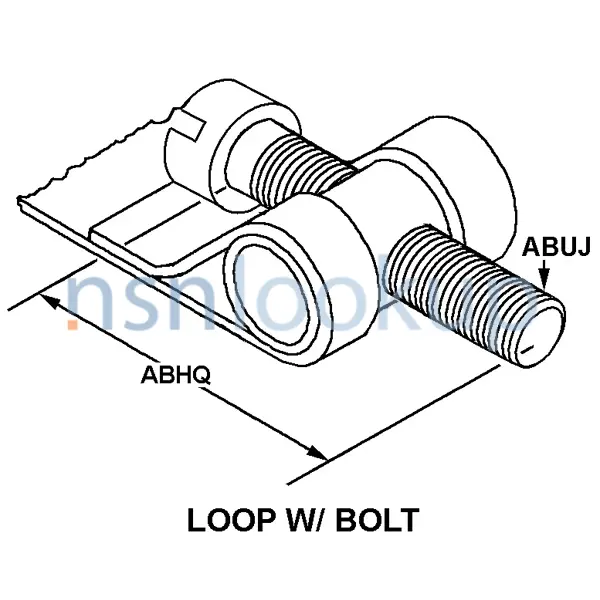

- End Style [ABQK]
- Loop With Bolt
- Material Document And Classification [MDCL]
- Qq-A-250/8 Fed Spec Single Material Response
- Material [MATT]
- Aluminum Alloy 5052
- Length [ABRY]
- 25.160 Inches Minimum And 25.220 Inches Maximum
- Special Features [FEAT]
- 8 Rivets And 1 Screw Assy Included;Item Used On 2350-00-056-6808
- Width [ABGL]
- 2.063 Inches Minimum And 2.125 Inches Maximum
- Thickness [ABNM]
- 0.023 Inches Minimum And 0.027 Inches Maximum
Similar Supply Items to 5340-00-953-9334
Freight Information 5340-00-953-9334
5340-00-953-9334 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 013120. A Sub NMFC of F. It has a NMFC Description of ALUMINUM ARTICLE NOI SUB 6. 5340-00-953-9334 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. 5340-00-953-9334 is rated as class 100 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 05380 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-00-953-9334 is not classified as a special type of cargo when transported by water. 5340-00-953-9334 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
