5340-00-952-1040
Flare Lock Fastener
5340009521040 009521040 1920-5-5 PAF20-5-5 C392-5-5
A shouldered hollow screw and threaded sleeve assembly, designed to be fastened in place by turning the screw, causing one end of the sleeve to flare over the shoulder and against the material through which it has been inserted. Also, a countersunk head hollow screw and flared sleeve-nut assembly, designed to mate with a dimpled hole in the material to which it is fastened. The hollow screws may also have internal threads for attaching screws. See also SHIELD, EXPANSION. View more Flare Lock Fastener
May 2023
19
Marketplace 5340-00-952-1040
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-952-1040 1+ Documents (More...)
(Identification) 1/3 NSN 5340-00-952-1040 (Identification) 2/3 NSN 5340-00-952-1040 (Identification
PAF20-5-5 FASTENER,FLARE LOCK 125 EA NS Request Quotation Subscribe to View Vendor Details... 5340-00
Restrictions 5340-00-952-1040
5340-00-952-1040 is a Flare Lock Fastener that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-00-952-1040
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FXKZ
- Brazil (YA01)
- Effective Date:
- 1 Feb 2010
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
Approved Sources 5340-00-952-1040
- Part Number
- Manufacturer
- Status
- 1920-5-5
- Manufacturer
- 80539 - Sps Technologies, Llc (Active)
- Primary Buy
- Primary Buy
- PAF20-5-5
- 80539 - Sps Technologies, Llc (Active)
- Primary Buy
- Primary Buy
- C392-5-5
- 81755 - Lockheed Martin Corporation (Active)
- Secondary Buy
- Secondary Buy
- C392-5-5
- 92215 - Howmet Global Fastening Systems Inc (Active)
- Secondary Buy
- Secondary Buy
- PAF20-5-5
- 56878 - Sps Technologies, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-00-952-1040
- Characteristic
- Specifications
- FIIG
- Specifications
- A03100
- Countersink Angle [CXXG]
- 100.0 Degrees Nominal
- Features Provided [CBBL]
- Closed Sleeve
- Head Diameter [AASL]
- 0.420 Inches Nominal
- Head Style [AASK]

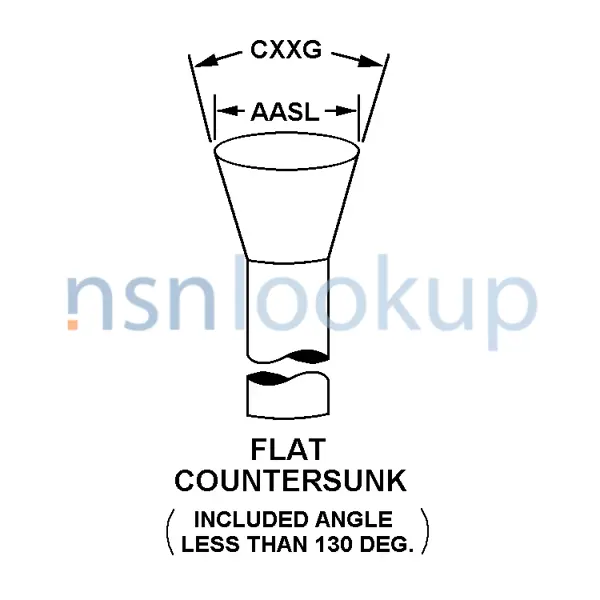

- Flat Countersunk
- Hole Size For Which Designed [CJRD]
- 0.3120 Inches Minimum And 0.3731 Inches Maximum
- Material Thickness Range For Which Designed [CJRF]
- +0.302/+0.322 Inches
- Mounting Method [AXGY]
- Screw
- Nominal Thread Size [CQJX]
- 0.190 Inches
- Internal Drive Style [ABQZ]
- Socket
- Screw Minimum Length For Which Designed [CJRH]
- 0.673 Inches
- Style Designator [STYL]
- Counterbored Sleeve
- Thread Series Designator [THSD]
- Unf
- Thread Quantity Per Inch [CMLP]
- 32
