5340-00-921-0662
Flare Lock Fastener
5340009210662 009210662 604D3-100-100
A shouldered hollow screw and threaded sleeve assembly, designed to be fastened in place by turning the screw, causing one end of the sleeve to flare over the shoulder and against the material through which it has been inserted. Also, a countersunk head hollow screw and flared sleeve-nut assembly, designed to mate with a dimpled hole in the material to which it is fastened. The hollow screws may also have internal threads for attaching screws. See also SHIELD, EXPANSION. View more Flare Lock Fastener
November 2023
21
Marketplace 5340-00-921-0662
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-921-0662 2+ Documents (More...)
(Identification) 1/2 NSN 5340-00-921-0662 (Identification) 2/2 - - 1.
FASTENER,FLARE LOCK 26 EA NS Request Quotation Updated Every Day 5340-00-921-0662 RQST NE Updated
Restrictions 5305-00-924-0662 DEMIL: B | DEMILI https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-921-0662
Flare Lock Fastener 5340009210662 009210662 Restrictions Approved Sources Datasheet Management
Restrictions 5340-00-921-0662
5340-00-921-0662 is a Flare Lock Fastener that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-00-921-0662
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GT
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Singapore (YJ01)
- Effective Date:
- 1 May 1996
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Nov 2010
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Feb 1995
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
Approved Sources 5340-00-921-0662
- Part Number
- Manufacturer
- Status
- 604D3-100-100
- Manufacturer
- 83324 - Howmet Global Fastening Systems Inc (Active)
- Primary Buy
- Primary Buy
- 604D3-100-100
- 29372 - Howmet Global Fastening Systems Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-00-921-0662
- Characteristic
- Specifications
- FIIG
- Specifications
- A03100
- Features Provided [CBBL]
- Open Sleeve

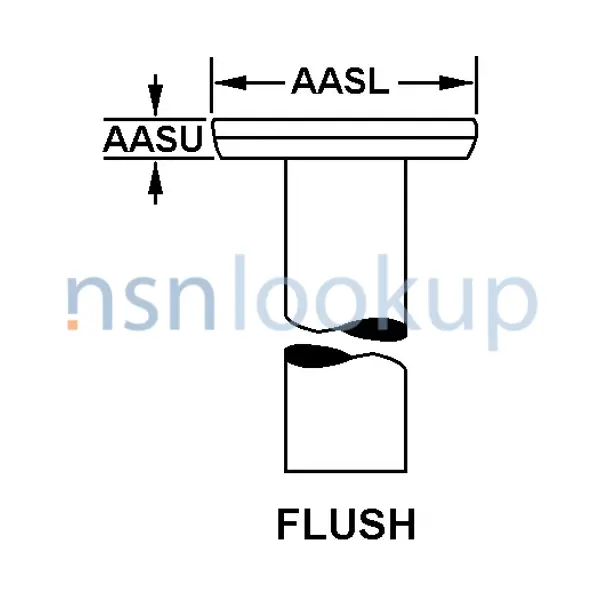

- Head Height [AASU]
- 0.023 Inches Nominal
- Head Diameter [AASL]
- 0.562 Inches Nominal
- Head Style [AASK]
- Flush
- Hole Size For Which Designed [CJRD]
- 0.365 Inches Minimum And 0.385 Inches Maximum
- Material Thickness Range For Which Designed [CJRF]
- +1.000/+1.099 Inches
- Mounting Method [AXGY]
- Screw
- Nominal Thread Size [CQJX]
- 0.190 Inches
- Screw Minimum Length For Which Designed [CJRH]
- 0.380 Inches
- Style Designator [STYL]
- Counterbored Sleeve
- Thread Series Designator [THSD]
- Unf
- Thread Quantity Per Inch [CMLP]
- 32
Weapon Systems (WSDC) 5340-00-921-0662
DLA Procurement Analysis 5340-00-921-0662
- Last Stock Position:
- 147 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-00-921-0662
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- CC
- Other Aircraft Categories
Multi-Application Aviation Spares
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-00-921-0662
Freight Information 5340-00-921-0662
5340-00-921-0662 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 013120. A Sub NMFC of F. It has a NMFC Description of ALUMINUM ARTICLE NOI SUB 6. 5340-00-921-0662 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 05380 which rates the freight between FCL and LCL. 5340-00-921-0662 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-00-921-0662 is not classified as a special type of cargo when transported by water. 5340-00-921-0662 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-921-0662
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Container
Procurement History 5340-00-921-0662 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7L123V7183
- 23 Jun 2023
- Subscribe
- 138
- Subscribe
- Subscribe
- Subscribe
- SPE7L123V6884
- 14 Jun 2023
- Subscribe
- 115
- Subscribe
- Subscribe
- Subscribe
- SPE7L122P3720
- 17 Feb 2022
- Subscribe
- 123
- Subscribe
- Subscribe
- Subscribe
- SPE5EJ21V3773
- 11 Jun 2021
- Subscribe
- 70
- Subscribe
- Subscribe
- Subscribe
- SPE5E916M1877
- 25 May 2016
- Subscribe
- 259
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5340-00-921-0662 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
