5340-00-906-6262
Helical Compression Spring Seat
5340009066262 009066262 12536 0921117
A circular item, usually having a flat or grooved flange, boss(es), and/or counterbore designed to accommodate the end of the spring. It is used to position the spring, but does not encase the spring or restrain lateral motion. It may be used in conjunction with a RETAINER, HELICAL COMPRESSION SPRING. Excludes WASHER (1), (as modified); SEAT, BALL SOCKET and HOLDER, SPRING. See also ROTOR, ENGINE POPPET VALVE. View more Helical Compression Spring Seat
May 2023
19
Marketplace 5340-00-906-6262
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-906-6262 5+ Documents (More...)
United States (US) 4. 5340-00-906-6262 Marketplace Restrictions Approved Sources Datasheet Management
SEAT,HELICAL COMPRESSION SPRING 5 EA NS Request Quotation Updated Every Day 5340-00-906-6262 RQST NE
5340-99-203-2691 2+ Documents ( More... ) https https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-906-6262
Helical Compression Spring Seat 009066262 your Account Upgrade 5340-00-906-6262Helical Compression
/fsg-61/fsc-6150/us
a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 675-12536
for $1 a day Upgrade your Account Upgrade 6150-01-130-4904Wiring Harness6150011304904 011304904 675-12536
ITEM 3 PL40-12536/3 Managed by Belgium NSN Created on 1 Sep 1997 Data Last Changed January 2023 NATO
ITEM 3PL40-12536/3 Managed by Belgium NSN Created on 1 Sep 1997 Data Last Changed January 2023 NATO
ITEM 2PL40-12536/2 Managed by Belgium NSN Created on 1 Sep 1997 Data Last Changed January 2023 NATO
ITEM 2PL40-12536/2 Managed by Belgium NSN Created https//www.nsnlookup.com /fsg-65/fsc-6515/us 6515-
Restrictions 5340-00-906-6262
5340-00-906-6262 is a Helical Compression Spring Seat that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-00-906-6262
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5340-00-906-6262
- Part Number
- Manufacturer
- Status
- 0921117
- Manufacturer
- 13446 - Perkins Engines Inc (Active)
- Primary Buy
- Primary Buy
- 0921117
- 93334 - Atwood Fence Co Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 0921117
- 12204 - Chrysler Realty Company Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 12536
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference

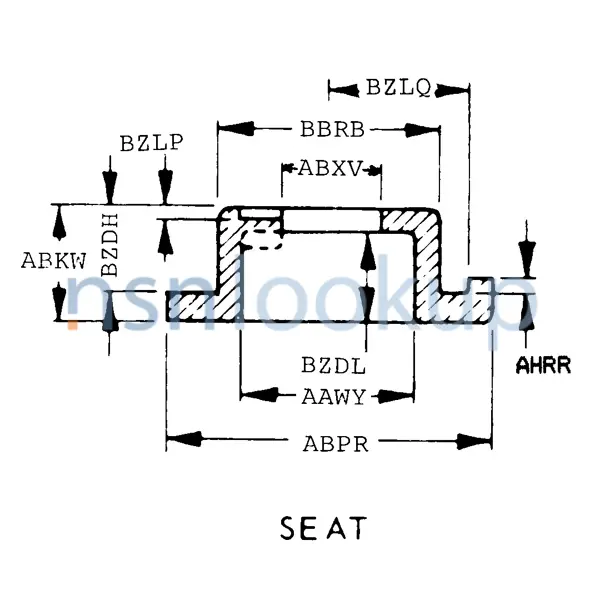

Datasheet 5340-00-906-6262
- Characteristic
- Specifications
- FIIG
- Specifications
- T319-E
- Distance From Center To Beginning Of Ridge [BZLQ]
- 0.7370 Inches Nominal
- Distance From End To First Step [BZDH]
- 0.1560 Inches Nominal
- End Diameter [BBRB]
- 0.7800 Inches Nominal
- Bore Diameter [ABXV]
- 0.5150 Inches Nominal
- Counterbore Diameter [AAWY]
- 0.7050 Inches Nominal
- Counterbore Length [BZDL]
- 0.1500 Inches Nominal
- Design Type [APGF]
- Solid
- Features Provided [CBBL]
- Casehardened
- First Step Diameter [ABPR]
- 1.5560 Inches Nominal
- Material [MATT]
- Steel
- Ridge Height [AHRR]
- 0.1300 Inches Nominal
- Overall Height [ABKW]
- 0.1880 Inches Nominal
- Style Designator [STYL]
- Seat
Weapon Systems (WSDC) 5340-00-906-6262
DLA Procurement Analysis 5340-00-906-6262
Management Data 5340-00-906-6262
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 2815
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 2815
- X
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-00-906-6262
Freight Information 5340-00-906-6262
5340-00-906-6262 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 5340-00-906-6262 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 5340-00-906-6262 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-00-906-6262 is not classified as a special type of cargo when transported by water. 5340-00-906-6262 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5340-00-906-6262 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
