5340-00-904-1290
Butt Hinge
5340009041290 009041290 ANSI/BHMA A156.1 5000-500-600 A-A-218 FF-H-116
A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side. View more Butt Hinge
January 2023
5
Marketplace 5340-00-904-1290
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5340-00-904-1290 5+ Documents (More...)
A-A-218 HINGE,BUTT 2 PG NS Request Quotation ANSI/BHMA A156.1 HINGE,BUTT 2 PG NS Request Quotation AA
A-A-218 HINGE,BUTT 2 PG NS Request Quotation ANSI/BHMA A156.1 HINGE,BUTT 2 PG NS Request Quotation AA
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-904-1290 Butt Hinge 5340009041290 009041290 5000
A-A-218 HINGE,BUTT 2 PG NS Request Quotation ANSI/BHMA A156.1 HINGE,BUTT 2 PG NS Request Quotation AA
A-A-218 HINGE,BUTT 2 PG NS Request Quotation ANSI/BHMA A156.1 HINGE,BUTT 2 PG NS Request Quotation AA
ANSI/BHMA A156.1 HINGE, BUTT 6 PG NS Request Quotation A-A-218 HINGE 8 PG NS Request Quotation 05-0029
ANSI/BHMA A156.1 HINGE,BUTT 2 PG NS Request Quotation AA-218 HINGE,BUTT 2 PG NS Request Quotation A-A
Butt Hinge 5340009041290 009041290 5000-500-600 A-A-218FF-H-116 A hinge usually with rectangularly
FF-H-116 HINGE,BUTT 1 PG NS Request Quotation Subscribe to View Vendor Details...
HINGE,BUTT 2 EA NS Request Quotation ANSI/BHMA A156.1 FF-H-116 HINGE,BUTT 1 EA NS Request Quotation
Restrictions 5340-00-904-1290
5340-00-904-1290 is a Butt Hinge that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-00-904-1290
- US Army (A192)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AZ
- US Air Force (FGGS)
- Effective Date:
- 1 Nov 2010
- Former MOE Rule:
- FXGS
- NASA (G721)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G861)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Jun 2004
- Supplementary Collaborators:
- GT
Approved Sources 5340-00-904-1290
- Part Number
- Manufacturer
- Status
- ANSI/BHMA A156.1
- Manufacturer
- 80204 - American National Standards (Active)
- Incomplete Reference
- Incomplete Reference
- 5000-500-600
- 85450 - Bommer Industries, Inc. (Active)
- Primary Buy
- Primary Buy
- A-A-218
- 58536 - Federal Commercial Item Description (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- FF-H-116
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete

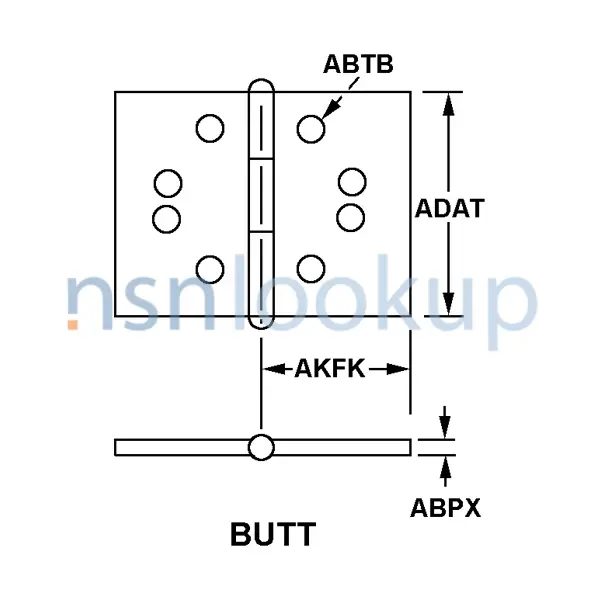

Datasheet 5340-00-904-1290
- Characteristic
- Specifications
- FIIG
- Specifications
- A25100
- Body Width [ADAT]
- 5.000 Inches Nominal
- Hinge Mounting Type [AKER]
- Full Mortise
- Material Thickness [ABPX]
- 0.146 Inches Nominal
- Mounting Hole Diameter [ABTB]
- 0.221 Inches Nominal
- Mounting Hole Quantity [ABTJ]
- 8
- Knuckle Type [AKNB]
- Friction
- Knuckle Quantity [AKEX]
- 5
- Material And Location [ANNQ]
- Steel Pin And Steel, Wrought Body And Steel, Wrought Button Tip
- Pin Removability [AKES]
- Removable
- Pin Tip Style [AKEV]
- Flat Button
- Reversible Feature [AJNC]
- Not Included
- Rising Pin [AKET]
- Not Included
- Performance Type [AGLD]
- Standard Weight
- Pin Center To Body Edge Distance [AKFK]
- 2.500 Inches Nominal
- Style Designator [STYL]
- Butt
- Surface Treatment And Location [ANNR]
- Primed For Painting Overall
Management Data 5340-00-904-1290
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2020
- Department of the Air Force (DF)
- PG
- Subscribe
- PG
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- K
- U/I Contains 3 Ea
- 00000000003EA
- K
- Department of the Air Force (DF)
- F
- K
- U/I Contains 3 Ea
- 00000000003EA
- K
- US Marine Corps (DM)
- M
- K
- U/I Contains 3 Ea
- 00000000003EA
- K
- Department of the Navy (DN)
- N
- K
- U/I Contains 3 Ea
- 00000000003EA
- K
- General Services Administration (TG)
- I
- K
- U/I Contains 3 Ea
- 00000000003EA
- K
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5340-00-904-1290
Freight Information 5340-00-904-1290
5340-00-904-1290 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095300. A Sub NMFC of Z. It has a NMFC Description of HINGES/BUTTS NOI I/S. 5340-00-904-1290 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49860 which rates the freight between FCL and LCL. 5340-00-904-1290 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-00-904-1290 is not classified as a special type of cargo when transported by water. 5340-00-904-1290 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
