5340-00-848-6017
Swivel Caster
5340008486017 008486017 322AS118-1 03-039522 9232 5952-BA
A caster designed to allow rotation of the wheel(s) or spherical constructed item in more than one plane. View more Swivel Caster
Managed by United States
NSN Created on 29 Apr 1972
Data Last Changed
June 2023
June 2023
NATO Update Count
20
20
NATO Data Quality
Marketplace 5340-00-848-6017
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-848-6017 4+ Documents (More...)
322AS118-1 03-039522 9232 5952-BA A caster designed to allow rotation of the wheel(s) or spherical constructed
Request a Quotation from participating marketplace vendors Request Global Test Supply 9232 Hioki 9232
Updated Every Day 5340-00-848-6017 RQST NE Updated Every Day 5340-00-848-6017 RQST Updated Every Day
Request a Quotation from participating marketplace vendors Request Global Test Supply 9232 Hioki 9232
Updated Every Day 5340-00-848-6017 RQST NE Updated Every Day 5340-00-848-6017 RQST Updated Every Day
Day 5315-99-833-4660 RQST NE Related Documents https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-848-6017
Swivel Caster 5340008486017 008486017 day Upgrade your Account Upgrade 5340-00-848-6017Swivel Caster5340008486017
008486017 322AS118-1 03-039522 vendors Request Global Test Supply 9232 Hioki 9232 https//www.nsnlookup.com
Swivel Caster 5340008486017 008486017 day Upgrade your Account Upgrade 5340-00-848-6017Swivel Caster5340008486017
008486017 322AS118-1 03-039522 vendors Request Global Test Supply 9232 Hioki 9232 https//www.nsnlookup.com
https//www.nsnlookup.com
/fsg-53/fsc-5340/us
/fsg-53/fsc-5340/us
5340-00-848-9143 Expansion Plug 5340008489143 008489143
Restrictions 5310-14-232-0904 DEMIL: | DEMILI : https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-848-6017
Swivel Caster 5340008486017 008486017 Upgrade for $1 a day Upgrade your Account Upgrade 5340-00
-848-6017Swivel Caster5340008486017 008486017 322AS118 https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340
Swivel Caster 5340008486017 008486017 Upgrade for $1 a day Upgrade your Account Upgrade 5340-00
-848-6017Swivel Caster5340008486017 008486017 322AS118 https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340
Restrictions 5340-00-848-6017
5340-00-848-6017 is a Swivel Caster that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-00-848-6017
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-848-6017
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Spain (YB01)
- Effective Date:
- 1 Jan 2007
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Malaysia (YW01)
- Effective Date:
- 1 Aug 2000
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 1997
- Portugal (ZP01)
- Effective Date:
- 1 Jan 2002
- Italy (ZR01)
- Effective Date:
- 1 Nov 1998
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
Approved Sources 5340-00-848-6017
- Part Number
- Manufacturer
- Status
- 322AS118-1
- Manufacturer
- 30003 - Naval Air Systems Command Managed (Active)
- Primary Buy
- Primary Buy
- 03-039522
- 52793 - Saginaw Products Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 9232
- 83445 - Aerol Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5952-BA
- 22938 - Prototype Development Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-00-848-6017
- Characteristic
- Specifications
- FIIG
- Specifications
- A25600
- Effective Height [BRHQ]
- 12.000 Inches Minimum And 13.000 Inches Maximum
- Caster Plate Length [CCTP]
- 4.500 Inches Nominal
- Caster Plate Mounting Hole Diameter [CCWC]
- 0.562 Inches Nominal
- Caster Plate Width [CCTQ]
- 5.500 Inches Nominal
- Center To Center Distance Between Bolt Holes Along Width [ADUY]
- 4.000 Inches Nominal
- Center To Center Distance Between Bolt Holes Along Length [ADUZ]
- 3.000 Inches Nominal
- Features Provided [CBBL]
- Retractable Wheel
- Material And Location [ANNQ]
- Steel Wheel Rim Err-100 Err-100
- Material And Location [ANNQ]
- Rubber Tire Err-100 Err-100

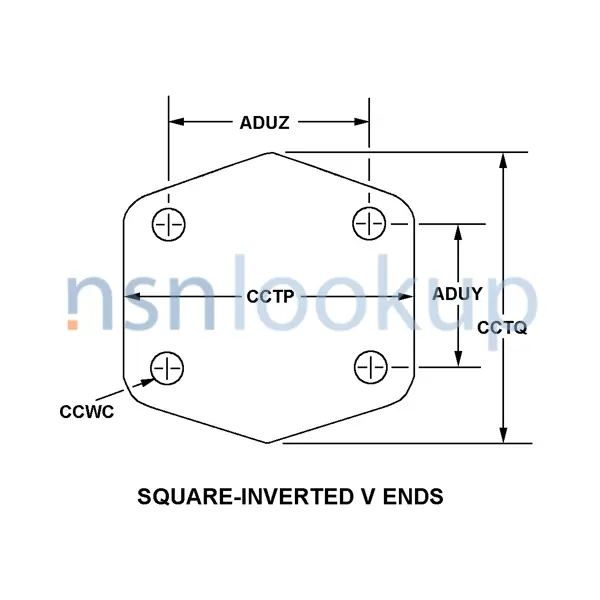

- Plate Style [CBZT]
- Square-Inverted V Ends
- Safe Operating Load Rating [ALSC]
- 390.0 Pounds Maximum
- Special Features [FEAT]
- Invert Top End Only
- Tread Width [CCBH]
- 3.600 Inches Nominal
- Wheel Diameter [BCDX]
- 12.600 Inches Nominal
- Wheel Quantity [AGDH]
- 1
- Wheel Type [AYMR]
- Pneumatic Tire
- Style Designator [STYL]
- Swivel Offset
Weapon Systems (WSDC) 5340-00-848-6017
DLA Procurement Analysis 5340-00-848-6017
Management Data 5340-00-848-6017
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Feb 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-00-848-6017
Freight Information 5340-00-848-6017
5340-00-848-6017 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 041725. A Sub NMFC of X. It has a NMFC Description of CASTERS NOI IN BAGS/BBL/BX. 5340-00-848-6017 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 21430 which rates the freight between FCL and LCL. 5340-00-848-6017 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-00-848-6017 is not classified as a special type of cargo when transported by water. 5340-00-848-6017 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-848-6017
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
