5340-00-842-3652
Electrical-Mechanical Equipment Post
5340008423652 008423652 734-327139-000 327-139
A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance. View more Spacing Threaded Standoff
January 2023
8
Marketplace 5340-00-842-3652
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-842-3652 2+ Documents (More...)
RQST NE Updated Every Day 5340-00-842-3652 RQST Updated Every Day 5340-00-842-3652 RQST NE Related
Documents 5340-00-842-3652 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340
Equipment Post your Account Upgrade 5340-00-842-3652Electrical-Mechanical Equipment Post5340008423652 008423652
Restrictions 5340-00-842-3652
5340-00-842-3652 is a Electrical-Mechanical Equipment Post that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-00-842-3652
- Belgium (ZB01)
- Effective Date:
- 1 Mar 2005
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5340-00-842-3652
- Part Number
- Manufacturer
- Status
- 734-327139-000
- Manufacturer
- 90073 - Cmc Electronics Inc (Active)
- Primary Buy
- Primary Buy
- 327-139
- 90073 - Cmc Electronics Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-00-842-3652
- Characteristic
- Specifications
- FIIG
- Specifications
- A08900
- Cross-Sectional Shape [ANLR]
- Round
- Diameter [ABMZ]
- 0.250 Inches Nominal
- Flange Diameter [ABKK]
- 0.250 Inches Nominal
- Flange Thickness [ABKU]
- 0.070 Inches Nominal
- Groove Width [ABGF]
- 0.070 Inches Nominal
- Groove Diameter [AAVZ]
- 0.185 Inches Nominal
- Left Slot Width [CXXH]
- 0.048 Inches Nominal
- Length [ABRY]
- 0.625 Inches Nominal

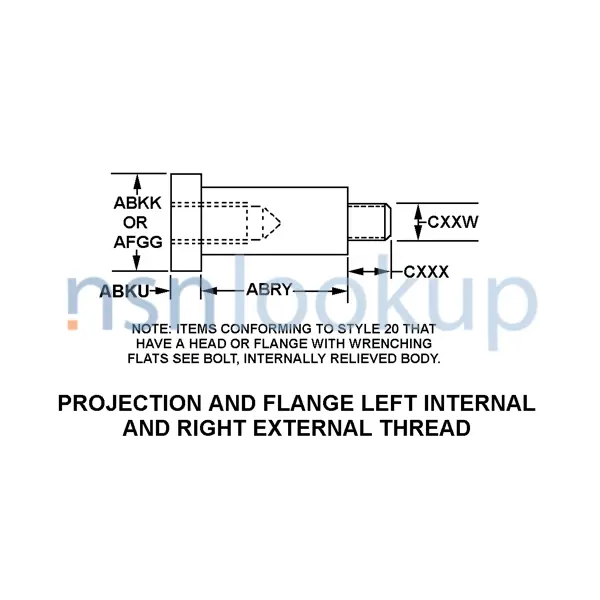

- Style Designator [STYL]
- Projection And Flange Left Internal And Right External Thread
Similar Supply Items to 5340-00-842-3652
Freight Information 5340-00-842-3652
5340-00-842-3652 has freight characteristics managed by the General Services Administration (GSA).It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-00-842-3652 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-00-842-3652 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 738 for ocean manifesting and military sealift. 5340-00-842-3652 is classified as an Electrostatic Sensitive Device (ESD) when transported by water. 5340-00-842-3652 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
