5340-00-842-1761
Retaining Clip
5340008421761 008421761 SE137
A clip formed from resilient wire stock into a shape resembling the letter U, with each of the prongs having one or more curvatures along its length. It is designed to hold itself in place by its inherent spring action when fitted into the groove(s) or notch(es) of the item upon which a part, shaft, pin, or a like item is to be held in place. See also PIN, LOCK; RING, RETAINING and CLIP, SPRING TENSION. For items specifically designed for aviaton, see CLIP(1), RETAINING, AVIATION. View more Retaining Clip
November 2023
12
Marketplace 5340-00-842-1761
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-842-1761 3+ Documents (More...)
RQST NE Updated Every Day 5340-00-842-1761 RQST Updated Every Day 5340-00-842-1761 RQST NE Related Documents
5340-00-842-1761 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-842-1761
www.nsnlookup.com /fsg-29/fsc-2990/us 2990-00-752-5766 https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-842-1761
Retaining Clip 5340008421761 008421761,SE137 vendors Request Updated Every Day 5340-00-842-1761
Restrictions 5340-00-842-1761
5340-00-842-1761 is a Retaining Clip that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-00-842-1761
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-842-1761
- US Coast Guard (C918)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- C004
- US Marine Corps (MC47)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5340-00-842-1761
- Part Number
- Manufacturer
- Status
- SE137
- Manufacturer
- 78388 - Woodward Controls Inc. (Active)
- Primary Buy
- Primary Buy
- SE137
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference

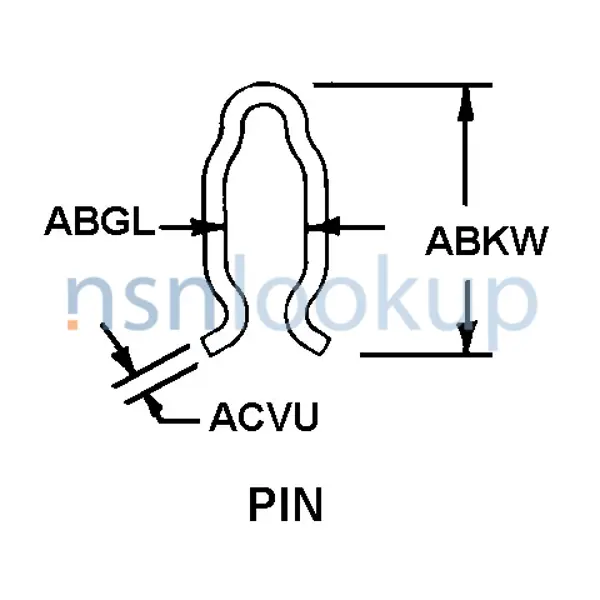

Datasheet 5340-00-842-1761
- Characteristic
- Specifications
- FIIG
- Specifications
- T319-A
- Casehardening Indicator [AASG]
- Not Casehardened
- Material [MATT]
- Steel
- Overall Height [ABKW]
- 0.625 Inches Nominal
- Width [ABGL]
- 0.188 Inches Nominal
- Stock Diameter [ACVU]
- 0.030 Inches Nominal
- Style Designator [STYL]
- Pin
Weapon Systems (WSDC) 5340-00-842-1761
DLA Procurement Analysis 5340-00-842-1761
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-00-842-1761
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5340-00-842-1761
Freight Information 5340-00-842-1761
5340-00-842-1761 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 094220. A Sub NMFC of X. It has a NMFC Description of CLIPS SHEET STEEL NOI. 5340-00-842-1761 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49780 which rates the freight between FCL and LCL. 5340-00-842-1761 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-00-842-1761 is not classified as a special type of cargo when transported by water. 5340-00-842-1761 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-842-1761
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 5340-00-842-1761 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
