5340-00-811-0563
Loop Clamp
5340008110563 008110563 C3125-1-89
A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE. View more Loop Clamp
January 2023
16
Marketplace 5340-00-811-0563
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-811-0563 4+ Documents (More...)
United States (US) 4. 5340-00-811-0563 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5340-00-811-0563 RQST Updated Every Day 5340-00-811-0563 RQST NE Related Documents
Loop Clamp 5340008110563 008110563 Upgrade for $1 a day Upgrade your Account Upgrade 5340-00-811
-0563Loop Clamp5340008110563 008110563 C3125-1 ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00
-0563Loop Clamp5340008110563 008110563 C3125 ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-811
C3125 Upgrade for $1 a day Upgrade your Account Upgrade 5340-00-811 -0563Loop Clamp5340008110563 008110563
-0563Loop Clamp5340008110563 008110563 C3125 ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-811
C3125 Upgrade for $1 a day Upgrade your Account Upgrade 5340-00-811 -0563Loop Clamp5340008110563 008110563
Restrictions 5340-00-811-0563
5340-00-811-0563 is a Loop Clamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-00-811-0563
- Spain (YB01)
- Effective Date:
- 1 Sep 2008
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
Approved Sources 5340-00-811-0563
- Part Number
- Manufacturer
- Status
- C3125-1-89
- Manufacturer
- 78553 - Tinnerman Palnut Engineered (Obsolete)
- Original Design
- Original Design

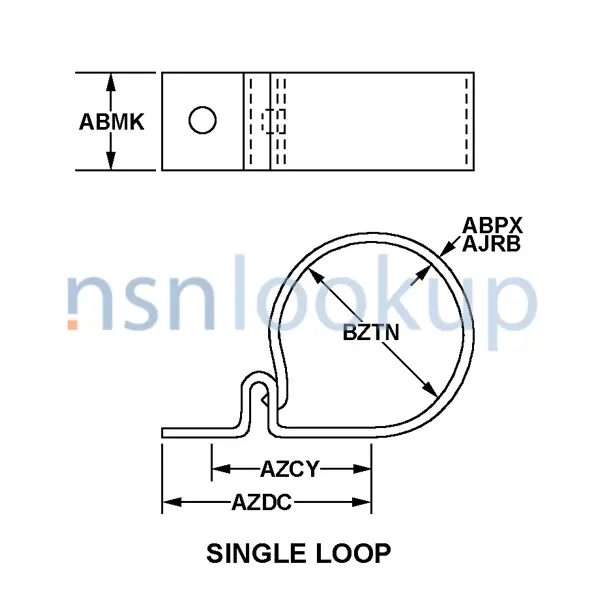

Datasheet 5340-00-811-0563
- Characteristic
- Specifications
- FIIG
- Specifications
- A12700
- Distance From Loop Center To Tongue End [AZDC]
- 0.750 Inches Nominal
- Distance From Outer Edge Of Lug To Hole Center [BZTP]
- 0.156 Inches Nominal
- Center To Center Distance Between Loop And Mounting Hole [AZCY]
- 0.594 Inches Nominal
- Cushioning Environmental Protection [AAAP]
- Heat
- Diameter [ABMZ]
- 0.203 Inches Nominal
- Material Thickness [ABPX]
- 0.017 Inches Nominal
- Material [MATT]
- Rubber Cushion
- Material [MATT]
- Steel Band
- Loop Inside Diameter [BZTN]
- 0.250 Inches Nominal
- Overall Width [ABMK]
- 0.625 Inches Nominal
- Tongue Hole Type [AAAL]
- Round, Unthreaded
- Style Designator [STYL]
- Single Loop
- Surface Treatment [SFTT]
- Zinc Band
Similar Supply Items to 5340-00-811-0563
Freight Information 5340-00-811-0563
5340-00-811-0563 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061200. A Sub NMFC of X. It has a NMFC Description of CABLE CLAMPS/JOINTS NOI. 5340-00-811-0563 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. 5340-00-811-0563 is rated as class 60 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34370 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5340-00-811-0563 is not classified as a special type of cargo when transported by water. 5340-00-811-0563 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
