5340-00-693-0604

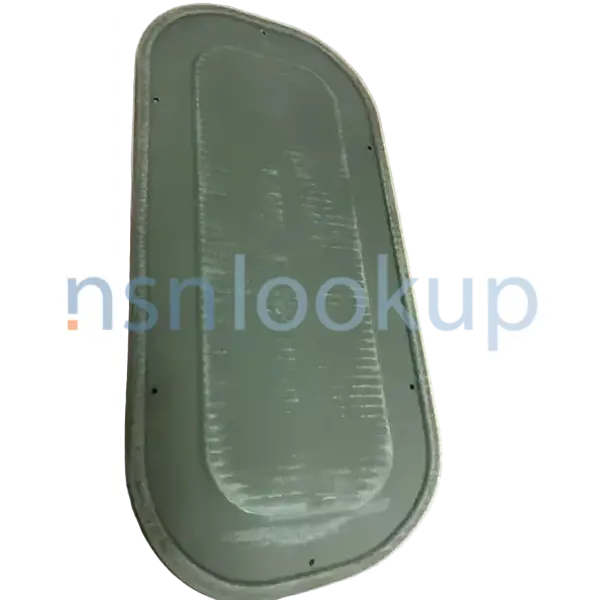

Access Cover
5340006930604 006930604 7373299 1619E3 KC8417 955348 2510006930604
A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above. View more Access Cover
December 2025
39
Marketplace 5340-00-693-0604
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5340-00-693-0604 5+ Documents (More...)
Vendor Details... 1619E3 COVER,ACCESS 4 EA SN Request Quotation Subscribe to View Vendor Details... 7373299
COVER 1 EA NS Request Quotation 7373299 COVER 2 EA NS Request Quotation 955348 COVER 3 EA NS Request
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-693-0604 Access Cover 5340006930604 006930604,,
7373299 Upgrade your Account Upgrade 5340-00-693-0604Access Cover5340006930604 006930604 7373299 1619E3
a day Upgrade your Account Upgrade 5315-00-928 -9395Headless Straight Pin5315009289395 009289395 955348
SN Request Quotation Subscribe to View Vendor Details... 7373299 COVER 1 EA NS Request Quotation 955348
www.nsnlookup.com /fsg-53/fsc-5315/us 5315-00-928-9395 Headless Straight Pin 5315009289395009289395 955348
a day Upgrade your Account Upgrade 5315-00-928 -9395Headless Straight Pin5315009289395 009289395 955348
Restrictions 5340-00-693-0604
5340-00-693-0604 is a Access Cover that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-00-693-0604
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-693-0604
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Jan 2003
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5340-00-693-0604
- Part Number
- Manufacturer
- Status
- 7373299
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 955348
- 71282 - Budd Co The (Active)
- Secondary Buy
- Secondary Buy
- 1619E3
- 56442 - Diamond Reo Truck Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- KC8417
- 56442 - Diamond Reo Truck Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 955348
- 58275 - Sasco Inc Canadian Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 2510006930604
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2510006930604
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5340-00-693-0604
- Characteristic
- Specifications
- FIIG
- Specifications
- A531C0
- Body Thickness [ADPR]
- 0.036 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Square Or Rectangular Recess
- First Recess Inside Height [ADPN]
- 0.156 Inches Nominal
- Hole Diameter [AAUB]
- 0.187 Inches Nominal
- Hole Quantity Along Length [ADNV]
- 4
- Hole Quantity Along Width [ADNW]
- 2
- Material [MATT]
- Steel Comp 1008 Or Steel Comp 1020
- Mounting Opening Shape Style [ADQK]
- Unthreaded Hole
- Inside Length [ADJU]
- 0.156 Inches Nominal
- Inside Width [ADJT]
- 1.531 Inches Nominal
- Length [ABRY]
- 21.062 Inches Nominal
- Securing Device Type [ADQB]
- Threaded Fastener
- Peripheral Shape Style [ABMW]
- Oval, Multi Holes
- Width [ABGL]
- 10.562 Inches Nominal
- Surface Treatment [SFTT]
- Enamel
Weapon Systems (WSDC) 5340-00-693-0604
DLA Procurement Analysis 5340-00-693-0604
- Last Stock Position:
- 4 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-00-693-0604
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- K
- Reserved
- Operational Test:
- No Special Procedures
Similar Supply Items to 5340-00-693-0604
Freight Information 5340-00-693-0604
5340-00-693-0604 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-00-693-0604 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-00-693-0604 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-00-693-0604 is not classified as a special type of cargo when transported by water. 5340-00-693-0604 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-693-0604
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5340-00-693-0604 1 Records
Contracting Technical Data File (CTDF) 5340-00-693-0604 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
