5340-00-687-5417
Bow Handle
5340006875417 006875417 1257SIZEN01
An item, usually basically U-shaped, designed to be rigidly attached to another item such as a drawer, door, or window to provide a grip for opening, closing, pulling, and the like. Includes sash lifts of the bow type and handles designed for the purpose of carrying an item. It may or may not include a mounting plate. Excludes HANDLE,DOOR. View more Bow Handle
January 2023
5
Marketplace 5340-00-687-5417
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-687-5417 1+ Documents (More...)
RQST NE Updated Every Day 5340-00-687-5417 RQST Updated Every Day 5340-00-687-5417 RQST NE Related Documents
5340-00-687-5417 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-687-5417
Restrictions 5340-00-687-5417
5340-00-687-5417 is a Bow Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-00-687-5417
- NASA (G190)
- Effective Date:
- 1 Apr 1991
Approved Sources 5340-00-687-5417
- Part Number
- Manufacturer
- Status
- 1257SIZEN01
- Manufacturer
- 87541 - Stanley Hardware Co Inc (Obsolete)
- Original Design
- Original Design
Datasheet 5340-00-687-5417
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Enamel Baked Overall
- Style Designator [STYL]

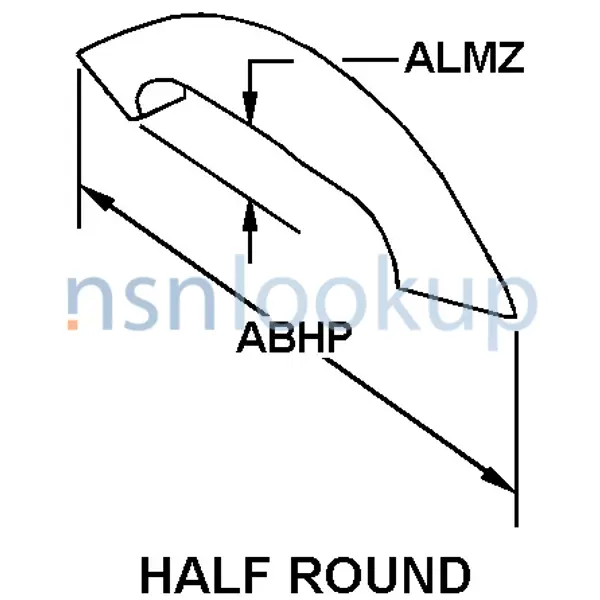

- Half Round
- Overall Length [ABHP]
- 5.125 Inches Nominal
- Mounting Facility Quantity [AKPV]
- 2
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 3.250 Inches Nominal
- Special Features [FEAT]
- Furnished W/2 Screws
- Supplementary Features [SUPP]
- With Drilled Holes
Similar Supply Items to 5340-00-687-5417
Freight Information 5340-00-687-5417
5340-00-687-5417 has freight characteristics.. 5340-00-687-5417 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
