5340-00-672-7445
Retaining Band
5340006727445 006727445 1271389
A flexible or semiflexible metal strip designed to partially surround and retain an item against a structure, frame, bracket, or the like. Includes a single segment of a sectioned type CLAMP, LOOP or CLAMP, HOSE. Both ends may have, but one end must have, a loop to accommodate a hinge pin, or a stud welded to the end of the band. May be furnished with a trunnion, T-bolt, pin, latch, or the like. For items designed to completely surround an object(s), see CLAMP, LOOP. See also COVER, ACCESS and STRAP, RETAINING. View more Retaining Band
January 2023
14
Marketplace 5340-00-672-7445
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-672-7445 1+ Documents (More...)
/fsg-53/fsc-5340/us
5340-00-672-7445 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-672-7445
RQST NE Updated Every Day 5340-00-672-7445 RQST Updated Every Day 5340-00-672-7445 RQST NE Restrictions
Restrictions 5340-00-672-7445
5340-00-672-7445 is a Retaining Band that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-00-672-7445
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5340-00-672-7445
- Part Number
- Manufacturer
- Status
- 1271389
- Manufacturer
- 10001 - Navair And Navsea Managed Original (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-00-672-7445
- Characteristic
- Specifications
- FIIG
- Specifications
- T372-J
- Arc Angle In Deg [AQMC]
- 316.0
- Bend Radius [AGSJ]
- 2.060 Inches Nominal
- Basic Shape Style [AGTA]
- C

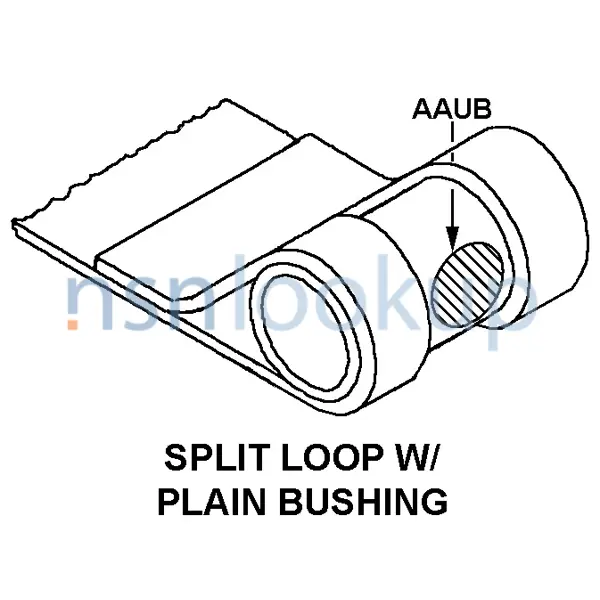

- End Style [ABQK]
- Split Loop With Plain Bushing
- Hole Diameter [AAUB]
- 0.191 Inches Minimum And 0.198 Inches Maximum
- Material Document And Classification [MDCL]
- Mil-S-5059, Comp 301, Cond 1/4 Hard Mil Spec Single Material Response
- Material [MATT]
- Steel Comp 301
- Special Features [FEAT]
- Band Is Adjustable
- Width [ABGL]
- 0.620 Inches Nominal
- Thickness [ABNM]
- 0.025 Inches Nominal
Similar Supply Items to 5340-00-672-7445
Freight Information 5340-00-672-7445
5340-00-672-7445 has freight characteristics.. 5340-00-672-7445 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
