5340-00-664-1317
Strap Hinge
5340006641317 006641317 ANSI/BHMA A156.20 S753-250 A-A-225 FF-H-00116
A hinge whose leaves are greater in dimension transversely to the axis of the hinge pin than they are parallel to the axis of the hinge pin, and whose sides may or may not be tapered along their greatest dimension, from the hinge pin toward a point at their extremity. View more Strap Hinge
August 2023
8
Marketplace 5340-00-664-1317
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-664-1317 5+ Documents (More...)

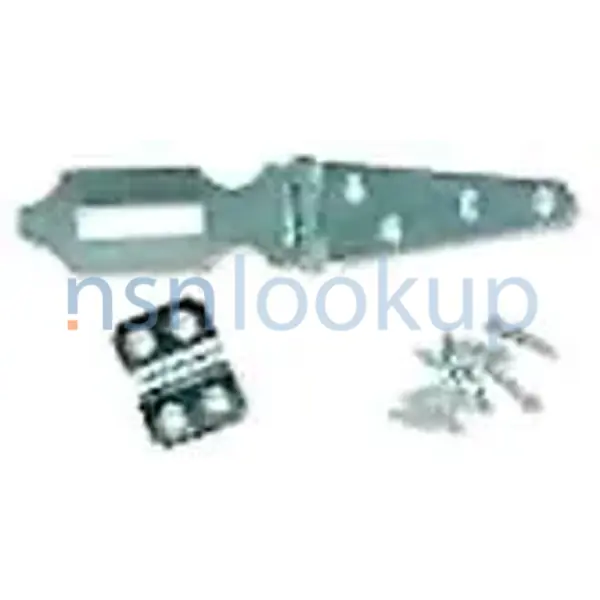

Photo 1/2 NSN 5340-00-664-1317 (Identification) 2/2 - - 1.
ANSI/BHMA A156.20 HINGE 139 PG NS Request Quotation A-A-225 HINGE 29 PG NS Request Quotation Subscribe
A-A-225 HINGE,STRAP 34 PG NS Request Quotation Subscribe to View Vendor Details...
HINGE 139 PG NS Request Quotation A-A-225 HINGE 29 PG NS Request Quotation Subscribe A-A-225 https//www.nsnlookup.com
HINGE 139 PG NS Request Quotation A-A-225 HINGE 29 PG NS Request Quotation Subscribe A-A-225 https//www.nsnlookup.com
HINGE 29 PG NS Request Quotation Subscribe A-A-225 https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340
FF-H-00116 HINGE,STRAP 8 PG NS Request Quotation Subscribe to View Vendor Details...
/fsg-53/fsc-5340/us 5340-00-664-1317 Strap Hinge 5340006641317 006641317 S753-250 A-A-225FF-H-00116
ANSI/BHMA A156.20 HINGE 9 PG NS Request Quotation Subscribe to View Vendor Details...
/fsg-53/fsc-5340/us 5340-00-664-1318 Strap Hinge 5340006641318 006641318 A-A-225 TY2 A-A-225 FF-H-00116
Restrictions 5340-00-664-1317
5340-00-664-1317 is a Strap Hinge that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-00-664-1317
- US Air Force (FXGS)
- Effective Date:
- 1 Mar 2013
- Former MOE Rule:
- FGGS
- NASA (G721)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G861)
- Effective Date:
- 1 Apr 1991
- NASA (G881)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GT
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
Approved Sources 5340-00-664-1317
- Part Number
- Manufacturer
- Status
- ANSI/BHMA A156.20
- Manufacturer
- 80204 - American National Standards (Active)
- Incomplete Reference
- Incomplete Reference
- S753-250
- L02F1 - Stanley Hardware (Active)
- Secondary Buy
- Secondary Buy
- A-A-225
- 58536 - Federal Commercial Item Description (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- FF-H-00116
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-00-664-1317
- Characteristic
- Specifications
- FIIG
- Specifications
- A25100
- Body Width [ADAT]
- 1.063 Inches Nominal
- Material Thickness [ABPX]
- 0.052 Inches Nominal
- Mounting Hole Diameter [ABTB]
- 0.157 Inches Nominal
- Mounting Hole Quantity [ABTJ]
- 6
- Knuckle Type [AKNB]
- Friction
- Knuckle Quantity [AKEX]
- 3
- Material And Location [ANNQ]
- Brass Pin And Steel, Wrought Body
- Reversible Feature [AJNC]
- Not Included
- Performance Type [AGLD]
- Light Duty
- Pin Center To Body Edge Distance [AKFK]
- 3.000 Inches Nominal
- Style Designator [STYL]
- Strap
- Surface Treatment And Location [ANNR]
- Zinc Coated,Electroplate Body
