5340-00-598-2577
Corrosion Preventive Anode
5340005982577 005982577 MILA18279
An item which sacrificially corrodes when coupled to a more noble metal in a conducting medium. View more Corrosion Preventive Anode
January 2023
4
Marketplace 5340-00-598-2577
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-598-2577 1+ Documents (More...)
5340-00-598-2577 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-598-2577
Corrosion Preventive Anode 5340005982577 MILA18279 An item which sacrificially corrodes when coupled
Restrictions 5340-00-598-2577
5340-00-598-2577 is a Corrosion Preventive Anode that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-00-598-2577
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5340-00-598-2577
- Part Number
- Manufacturer
- Status
- MILA18279
- Manufacturer
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard

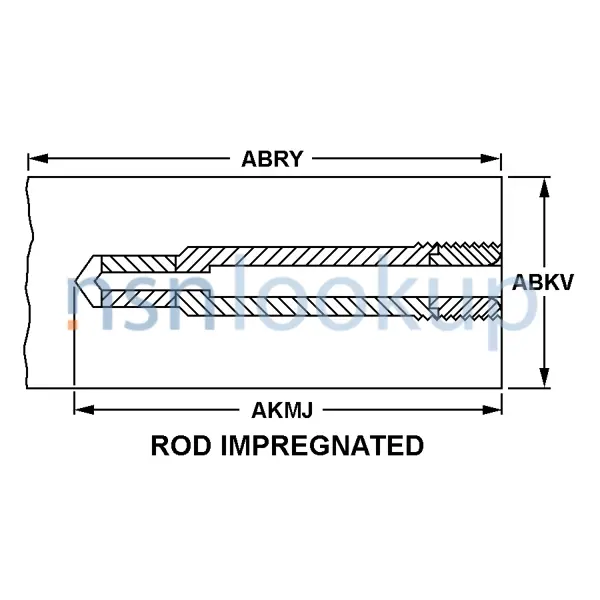

Datasheet 5340-00-598-2577
- Characteristic
- Specifications
- FIIG
- Specifications
- A25200
- Construction [ARQS]
- Solid
- Core Length [AKMJ]
- 6.000 Inches Maximum
- Mounting Method [ADJH]
- Threaded Plug
- Nominal Thread Length [AKMG]
- 1.000 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Class And Gr-60 Type
- Outside Diameter [ABKV]
- 3.000 Inches Nominal
- Length [ABRY]
- 60.000 Inches Nominal
- Material And Location [ANNQ]
- Graphite, Mil-A-18279, Class 1, Type Gr 60-Canceled Anode And Copper, Mil-C-915 Core
- Style Designator [STYL]
- Rod Impregnated
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Size And Series/Type Designator [THDS]
- 1.125-7 Unc
Similar Supply Items to 5340-00-598-2577
Freight Information 5340-00-598-2577
5340-00-598-2577 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 089890. A Sub NMFC of X. It has a NMFC Description of GRAPHITE BRICK NOI IN BX/BBL/CRATE. 5340-00-598-2577 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 47260 which rates the freight between FCL and LCL. 5340-00-598-2577 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 772 for ocean manifesting and military sealift. 5340-00-598-2577 is not classified as a special type of cargo when transported by water. 5340-00-598-2577 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-598-2577
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- ASTM-D6251, Type III, Class 2, Overseas Cleated Plywood Box or ASTM-D6880, Class 2, Heavy Duty Nailed Wood Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
