5340-00-558-0657
Leather Strap
5340005580657 005580657 5580657
A narrow strip of leather cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and LEATHER (as modified). Do not use if a more specific item name is applicable. View more Leather Strap
January 2023
14
Marketplace 5340-00-558-0657
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-558-0657 1+ Documents (More...)
5340-00-558-0657 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-558-0657
Leather Strap 5340005580657 005580657,5580657 5580657 A narrow strip of leather cut to a definite length
Restrictions 5340-00-558-0657
5340-00-558-0657 is a Leather Strap that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-00-558-0657
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-558-0657
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Sep 2009
Approved Sources 5340-00-558-0657
- Part Number
- Manufacturer
- Status
- 5580657
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-00-558-0657
- Characteristic
- Specifications
- FIIG
- Specifications
- T372-B
- Distance From Strap End To First Hole [BYBW]
- 2.625 Inches Nominal
- End Attachment/Fastening Facility [CBSZ]
- Buckle
- End Attachment/Fastening Facility [CBSZ]
- Keeper
- Attachment Method For Which Designed [BTLM]
- Riveted

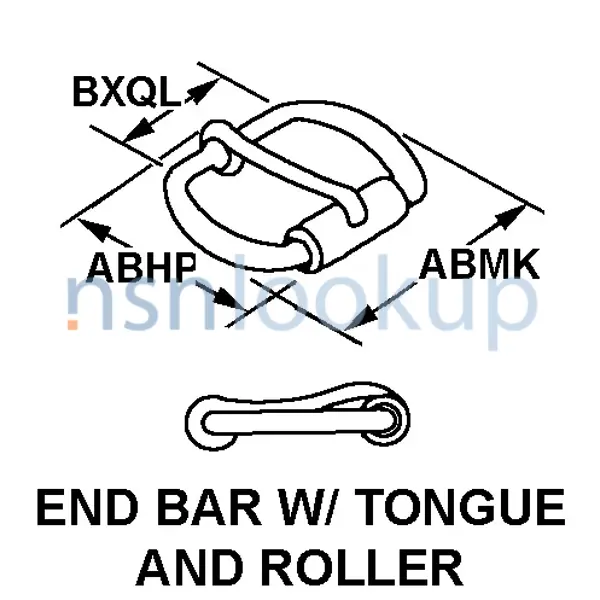

- Buckle Style Designator [CXKH]
- End Bar With Tongue And Roller
- Buckle Surface Treatment [BXQN]
- Black Chemical
- Buckle Tongue Hole Location And Quantity [BYBS]
- 11 Holes On One End
- Buckle Fastening Method [BYBR]
- Riveted
- Buckle Location [BYBP]
- At The End
- Buckle Material [BXQM]
- Brass
- Center To Center Distance Between Holes [ABRF]
- 1.409 Inches Nominal
- Color [HUES]
- Any Acceptable
- End Type [APTD]
- Folded
- End Type [APTD]
- Plain
- Environmental Protection [ADZC]
- Mildew Resistant
- Fastened Keeper Feature [BYCJ]
- Included
- Fastened Buckle Feature [BYBQ]
- Included
- Fold Type [BYBT]
- Loose
- Material [MATT]
- Leather Cattlehide
- Keeper Material [BYCG]
- Leather
- Keeper Quantity [BYCH]
- 2
- Length [ABRY]
- 80.000 Inches Nominal
- Material Document And Classification [MDCL]
- Kk-L-271, Type 2, Class 1 Fed Spec Single Material Response
- Width [ABGL]
- 0.718 Inches Nominal
Similar Supply Items to 5340-00-558-0657
Freight Information 5340-00-558-0657
5340-00-558-0657 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 131470. A Sub NMFC of X. It has a NMFC Description of TEXTILE MACH STRAPS LEATHER/WEBBING. 5340-00-558-0657 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 5340-00-558-0657 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 66510 which rates the freight between FCL and LCL. 5340-00-558-0657 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-00-558-0657 is not classified as a special type of cargo when transported by water. 5340-00-558-0657 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
