5340-00-515-0792

Hand Crank

5340005150792 005150792 RLD6213REVJ SM-B-202426 SM-B-202432 SM-B-202427 SM-B-202428 SM-B-202431 SM-B-202429 SM-B-202430 US83346 RLD6213G AG0352L GC7 RLD6213 AG0352 SCDL26213 D213595

An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR. View more Hand Crank

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
31

NATO Data Quality

AJFW Style 105 for 5340-00-515-0792 1/4 — NSN 5340-00-515-0792 (Identification) 1/4

ALMP Style 64 for 5340-00-515-0792 2/4 — NSN 5340-00-515-0792 (Identification) 2/4

AWJW Style 5 for 5340-00-515-0792 3/4 — NSN 5340-00-515-0792 (Identification) 3/4

AWJY Style 166 for 5340-00-515-0792 4/4 — NSN 5340-00-515-0792 (Identification) 4/4

Marketplace 5340-00-515-0792

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

SM-B-202426 CRANK,HAND 2 EA NS

Updated Every Day

5340-00-515-0792 RQST NE

Updated Every Day

5340-00-515-0792 RQST

Updated Every Day

5340-00-515-0792 RQST NE

Restrictions 5340-00-515-0792

5340-00-515-0792 is a Hand Crank that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.

Import and Export 5340-00-515-0792

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5340-00-515-0792

US Army (A919)
Effective Date:: 1 Sep 2005
Former MOE Rule:: A187
Supplementary Receivers:: CL; AMC 1 AMSC G IMC Z IMCACTY CD

US Navy (N9BZ)
Effective Date:: 1 Sep 2005
Former MOE Rule:: N9ZD
Supplementary Collaborators:: HD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Spain (YB01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

Approved Sources 5340-00-515-0792

Part Number
Manufacturer
Status
SM-B-202426: 80063 - Us Army Communications & Electronics (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
SM-B-202432: 80063 - Us Army Communications & Electronics (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
SM-B-202427: 80063 - Us Army Communications & Electronics (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
SM-B-202428: 80063 - Us Army Communications & Electronics (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
SM-B-202431: 80063 - Us Army Communications & Electronics (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
SM-B-202429: 80063 - Us Army Communications & Electronics (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
SM-B-202430: 80063 - Us Army Communications & Electronics (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
US83346: 79201 - Warwick Electronics Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
RLD6213G: 80063 - Us Army Communications & Electronics (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
AG0352L: 36004 - Lewyt Corp (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
GC7: 80063 - Us Army Communications & Electronics (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
RLD6213: 80063 - Us Army Communications & Electronics (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
AG0352: 3E191 - Rauland-Borg Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
GC7: 53380 - Huffy Corp (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
SCDL26213: 80063 - Us Army Communications & Electronics (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
D213595: 72380 - Crosley Corp The (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
US83346: 57057 - Navcom Defense Electronics, Inc. (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
RLD6213REVJ: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6

Datasheet 5340-00-515-0792

Characteristic
Specifications
FIIG: A25300
Drive End Outside Diameter [AHMK]: 0.375 Inches Nominal
Drive End Style [AJFW]: External

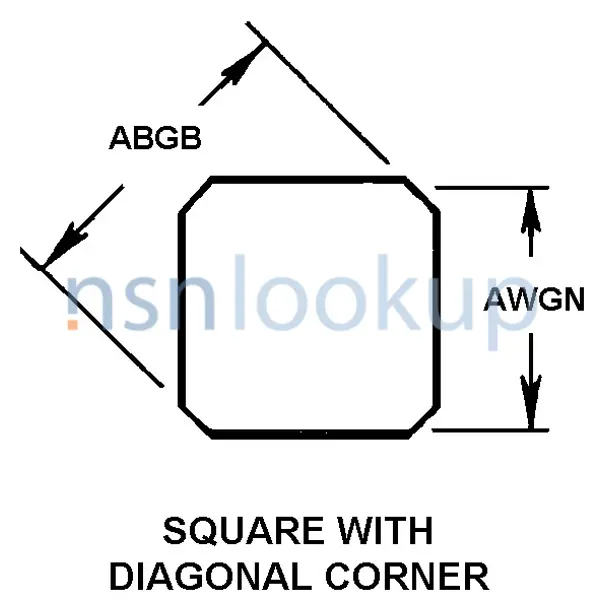

Drive Facility Style [AWJY]: Square With Diagonal Corner
Drive Width [AWGN]: 0.375 Inches Minimum And 0.378 Inches Maximum
Arm Style [AWJW]: Straight
Color And Location [AWJT]: Olive Drab Arm Err-100 Err-100
Color And Location [AWJT]: Olive Drab Handle Err-100 Err-100
Crank Throw Length [AWKG]: 7.000 Inches Nominal
Handle Length [AASN]: 3.000 Inches Nominal
Handle Mounting Method [AWKC]: Integral
Handle Rotating Feature [AWKD]: Included
Handle Style [ALMP]: Round
Mounting Facility [AZGM]: Spring Loaded Ball
Length From End To Arm Center [AWKM]: 1.719 Inches Nominal
Material And Location [ANNQ]: Steel Arm Err-100 Err-100
Material And Location [ANNQ]: Steel Bushing Err-100 Err-100
Material And Location [ANNQ]: Steel Drive End Err-100 Err-100
Material And Location [ANNQ]: Wood Handle Err-100 Err-100
Ratchet [AWKF]: Not Included
Surface Treatment And Location [ANNR]: Enamel Handle Err-100 Err-100
Surface Treatment And Location [ANNR]: Enamel Arm Err-100 Err-100

Subscribe
View Data

DLA Procurement Analysis 5340-00-515-0792

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5340-00-515-0792

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Mar 2023: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2022: Department of the Army (DA); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2019: Department of the Army (DA); EA; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
Department of the Navy (DN): N; X; Formerly 6660
Defense Logistics Agency (DS): I; X; Formerly 6660

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

NATO Stock Numbers Related to 5340-00-515-0792

5340-17-054-3861 5340-33-001-8816 5340-14-238-5731 5340-14-266-0884 5340-99-618-9225 5340-22-610-9300 5340-12-360-0753 5340-22-600-6226 5340-98-200-7369 5340-14-526-5935 2020-14-361-0485 5340-14-411-8658 5340-14-298-0348 5340-12-149-0144 5340-12-148-3203 5340-12-196-3058 5340-14-434-6465 5340-12-360-3862

Freight Information 5340-00-515-0792

5340-00-515-0792 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5340-00-515-0792 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-00-515-0792 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-00-515-0792 is not classified as a special type of cargo when transported by water. 5340-00-515-0792 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5340-00-515-0792

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Storage Environment: Unheated General Purpose

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; --; --

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; 3.0" H x 2.5" W x 0.6" L; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
