5340-00-498-9140
Buckle
5340004989140 004989140 SCA723B SCD1784PT15 SCD723B
A fastening device used to join two ends of a belt, strap or the like. It may be a single unit designed to be attached to one end of a belt or strap and secure the opposite end by penetration, by clamping, or by friction, or it may consist of male and female sections having one section attached at each end of the belt or strap and joins the two ends by a hook-like or other interlocking action. View more Buckle
June 2023
16
Marketplace 5340-00-498-9140
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-498-9140 1+ Documents (More...)
/fsg-53/fsc-5340/us
RQST NE Updated Every Day 5340-00-498-9140 RQST Updated Every Day 5340-00-498-9140 RQST NE Related Documents
5340-00-498-9140 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-498-9140
Restrictions 5340-00-498-9140
5340-00-498-9140 is a Buckle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-00-498-9140
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-498-9140
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5340-00-498-9140
- Part Number
- Manufacturer
- Status
- SCA723B
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- SCD1784PT15
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- SCD723B
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-00-498-9140
- Characteristic
- Specifications
- FIIG
- Specifications
- T372-G
- Enameled Feature [CBTB]
- Not Included

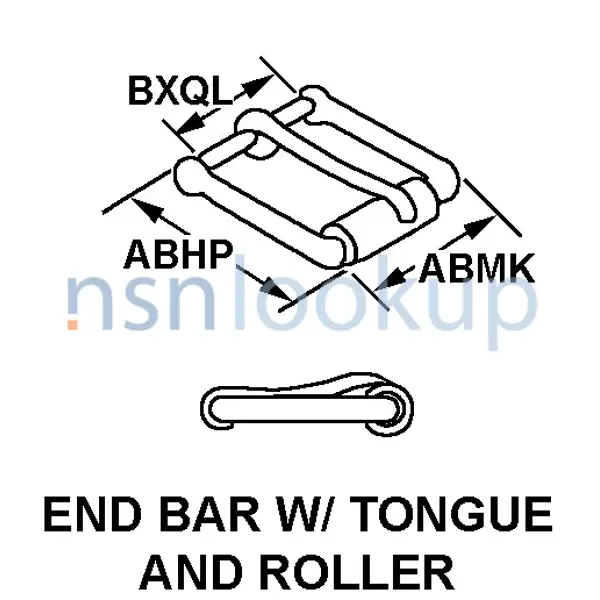

- Buckle Style Designator [CXKH]
- End Bar With Tongue And Roller
- Insignia [BYMJ]
- Not Included
- Material And Location [ANNQ]
- Iron, Malleable Frame
- Material And Location [ANNQ]
- Steel Roller
- Material And Location [ANNQ]
- Steel Tongue
- Overall Length [ABHP]
- 1.188 Inches Nominal
- Strap Accommodation Width [BXQL]
- 1.000 Inches Nominal
Similar Supply Items to 5340-00-498-9140
Freight Information 5340-00-498-9140
5340-00-498-9140 has freight characteristics.. 5340-00-498-9140 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
