5340-00-468-0791
Hand Crank
5340004680791 004680791 475-4903-69107ALT4PCAK3T0M3 386461PCJP3T0R3 485-475PCAK3T0M3 485-228PCJP3Q3R3 485-228PCJP3T0R3
An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR. View more Hand Crank
May 2023
5
Marketplace 5340-00-468-0791
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-468-0791 1+ Documents (More...)
(Identification) 1/4 NSN 5340-00-468-0791 (Identification) 2/4 NSN 5340-00-468-0791 (Identification
RQST NE Updated Every Day 5340-00-468-0791 RQST Updated Every Day 5340-00-468-0791 RQST NE Related Documents
Restrictions 5340-00-468-0791
5340-00-468-0791 is a Hand Crank that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-00-468-0791
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-468-0791
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5340-00-468-0791
- Part Number
- Manufacturer
- Status
- 475-4903-69107ALT4PCAK3T0M3
- Manufacturer
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- 386461PCJP3T0R3
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- 485-475PCAK3T0M3
- 81316 - Portsmouth Naval Shipyard (Active)
- Primary Buy
- Primary Buy
- 485-228PCJP3Q3R3
- 81316 - Portsmouth Naval Shipyard (Active)
- Primary Buy
- Primary Buy
- 485-228PCJP3T0R3
- 81316 - Portsmouth Naval Shipyard (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-00-468-0791
- Characteristic
- Specifications
- FIIG
- Specifications
- A25300
- Material And Location [ANNQ]
- Steel Overall

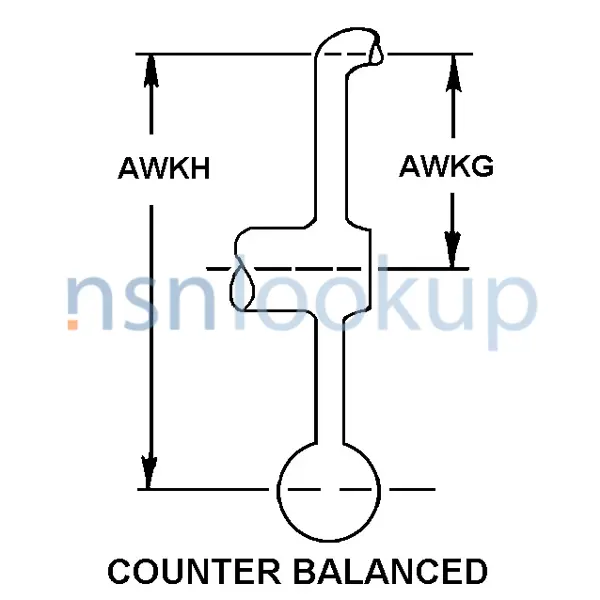

- Arm Style [AWJW]
- Counter Balanced
- Crank Throw Length [AWKG]
- 4.000 Inches Nominal
- Arm Length [AWKH]
- 8.500 Inches Nominal
- Drive End Style [AJFW]
- External
- Drive End Outside Diameter [AHMK]
- 1.500 Inches Nominal
- Shank Height [AQZQ]
- 3.000 Inches Nominal
- Drive Facility Style [AWJY]
- Square
- Overall Depth [ABFY]
- 0.875 Inches Nominal
- Drive Width [AWGN]
- 0.562 Inches Nominal
- Crank Overall Length [AWKA]
- 5.000 Inches Nominal
- Handle Mounting Method [AWKC]
- Pin
- Handle Style [ALMP]
- Recessed Flat
- Handle Length [AASN]
- 3.375 Inches Nominal
- Handle Rotating Feature [AWKD]
- Not Included
- Ratchet [AWKF]
- Not Included
DLA Procurement Analysis 5340-00-468-0791
Management Data 5340-00-468-0791
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5340-00-468-0791
Freight Information 5340-00-468-0791
5340-00-468-0791 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-00-468-0791 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-00-468-0791 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5340-00-468-0791 is not classified as a special type of cargo when transported by water. 5340-00-468-0791 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5340-00-468-0791 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
