5340-00-392-4747
Helical Compression Spring Seat
5340003924747 003924747 78036 559D1-0593 78036A 133MAJ1 H78036A
A circular item, usually having a flat or grooved flange, boss(es), and/or counterbore designed to accommodate the end of the spring. It is used to position the spring, but does not encase the spring or restrain lateral motion. It may be used in conjunction with a RETAINER, HELICAL COMPRESSION SPRING. Excludes WASHER (1), (as modified); SEAT, BALL SOCKET and HOLDER, SPRING. See also ROTOR, ENGINE POPPET VALVE. View more Helical Compression Spring Seat
June 2023
24
Marketplace 5340-00-392-4747
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-392-4747 5+ Documents (More...)
NE Updated Every Day 5340-00-392-4747 RQST Updated Every Day 5340-00-392-4747 RQST NE Related Documents
5340-00-392-4747 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-392-4747
www.nsnlookup.com /fsg-53/fsc-5340/tr 5340-27-044-3756 Mounting Bracket 5340270443756270443756 12E01-78036
www.nsnlookup.com /fsg-53/fsc-5340/tr 5340-27-044-3755 Mounting Bracket 5340270443755270443755 12E01-78036
how to enable JavaScript in your web browser . 4320-99-828-6879Pumping Unit4320998286879 998286879 78036
Helical Compression Spring Seat 003924747 your Account Upgrade 5340-00-392-4747Helical Compression
www.nsnlookup.com /fsg-53/fsc-5340/tr 5340-27-044-3756 Mounting Bracket 5340270443756270443756 12E01-78036
048-8312 Basamak Bagla Sac 5340270488312 270488312 3755Mounting Bracket5340270443755 270443755 12E01-78036
www.nsnlookup.com /fsg-53/fsc-5340/tr 5340-27-044-3755 Mounting Bracket 5340270443755270443755 12E01-78036
enable JavaScript in your web browser . 5340-27-044-3755Mounting Bracket5340270443755 270443755 12E01-78036
Restrictions 5340-00-392-4747
5340-00-392-4747 is a Helical Compression Spring Seat that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-00-392-4747
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5340-00-392-4747
- Part Number
- Manufacturer
- Status
- 78036
- Manufacturer
- 1ML14 - Brinkley Technology Group Llc (Active)
- Primary Buy
- Primary Buy
- 78036
- 28265 - Hercules Engine Co Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 559D1-0593
- 75377 - Kurz & Root Generator Company, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 78036A
- 50870 - Arnold A Semler Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 133MAJ1
- 05415 - Linde Lift Truck Corp. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- H78036A
- 05415 - Linde Lift Truck Corp. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 78036A
- 28265 - Hercules Engine Co Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-00-392-4747
- Characteristic
- Specifications
- FIIG
- Specifications
- T319-E
- Distance From End To First Step [BZDH]
- 0.1010 Inches Nominal
- End Diameter [BBRB]
- 0.6460 Inches Nominal
- Bore Diameter [ABXV]
- 0.2710 Inches Nominal
- Bore Taper In Deg [BYYF]
- 10.0
- Design Type [APGF]
- Solid
- First Step Diameter [ABPR]
- 0.9220 Inches Nominal
- First Step Length [ABPS]
- 0.1090 Inches Nominal
- Material [MATT]
- Steel
- Seat Angle In Deg [AJFY]
- 10.0
- Second End Diameter [AMFZ]
- 0.8120 Inches Nominal
- Second Step Diameter [ABPT]
- 1.1870 Inches Nominal
- Overall Height [ABKW]
- 0.3420 Inches Nominal

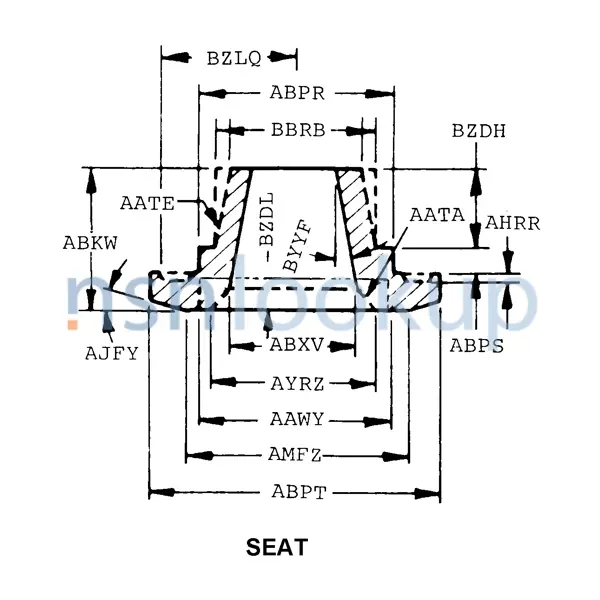

- Special Features [FEAT]
