5340-00-379-6368
Retaining Band
5340003796368 003796368 2302C63-725M 680-514-9501
A flexible or semiflexible metal strip designed to partially surround and retain an item against a structure, frame, bracket, or the like. Includes a single segment of a sectioned type CLAMP, LOOP or CLAMP, HOSE. Both ends may have, but one end must have, a loop to accommodate a hinge pin, or a stud welded to the end of the band. May be furnished with a trunnion, T-bolt, pin, latch, or the like. For items designed to completely surround an object(s), see CLAMP, LOOP. See also COVER, ACCESS and STRAP, RETAINING. View more Retaining Band
November 2023
6
Marketplace 5340-00-379-6368
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-379-6368 2+ Documents (More...)
/fsg-53/fsc-5340/us
(Identification) 1/2 NSN 5340-00-379-6368 (Identification) 2/2 - - 1.
BAND,RETAINING 5 EA NS Request Quotation Updated Every Day 5340-00-379-6368 RQST NE Updated Every
Retaining Band 5340003796368 003796368 5315/us 5315-00-920-5116 Stacker Gear Pin 5315009205116
738-0815Gasket5330997380815 997380815 F275/725M https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-379-6368
Restrictions 5340-00-379-6368
5340-00-379-6368 is a Retaining Band that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5340-00-379-6368
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-00-379-6368
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FXKZ
- Republic of Korea (ZH01)
- Effective Date:
- 1 Oct 2009
Approved Sources 5340-00-379-6368
- Part Number
- Manufacturer
- Status
- 2302C63-725M
- Manufacturer
- 00624 - Eaton Aeroquip Llc (Active)
- Primary Buy
- Primary Buy
- 680-514-9501
- 99193 - Honeywell International Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-00-379-6368
- Characteristic
- Specifications
- FIIG
- Specifications
- T372-J
- Basic Shape Style [AGTA]
- Flat

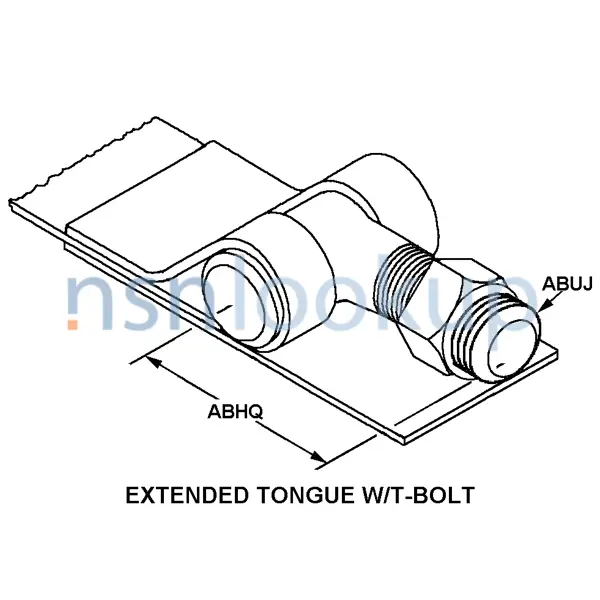

- End Style [ABQK]
- Extended Tongue W/T-Bolt
- Material Document And Classification [MDCL]
- Mil-S-5059 Mil Spec Single Material Response
- Material [MATT]
- Steel Comp 301 Or Steel Comp 302 Or Steel Comp 304 Or Steel Comp 316
- Length [ABHQ]
- 1.750 Inches Nominal
- Length [ABRY]
- 7.250 Inches Nominal
- Thread Size [ABUJ]
- 10-32
- Width [ABGL]
- 0.630 Inches Nominal
- Thickness [ABNM]
- 0.020 Inches Nominal
Weapon Systems (WSDC) 5340-00-379-6368
DLA Procurement Analysis 5340-00-379-6368
- Last Stock Position:
- 10 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-00-379-6368
Similar Supply Items to 5340-00-379-6368
Freight Information 5340-00-379-6368
5340-00-379-6368 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 104180. A Sub NMFC of X. It has a NMFC Description of BAND/HOOP I/S. 5340-00-379-6368 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 53690 which rates the freight between FCL and LCL. 5340-00-379-6368 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-00-379-6368 is not classified as a special type of cargo when transported by water. 5340-00-379-6368 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-379-6368
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5340-00-379-6368 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
