5340-00-376-6424
Retaining Band
5340003766424 003766424 199-47102
A flexible or semiflexible metal strip designed to partially surround and retain an item against a structure, frame, bracket, or the like. Includes a single segment of a sectioned type CLAMP, LOOP or CLAMP, HOSE. Both ends may have, but one end must have, a loop to accommodate a hinge pin, or a stud welded to the end of the band. May be furnished with a trunnion, T-bolt, pin, latch, or the like. For items designed to completely surround an object(s), see CLAMP, LOOP. See also COVER, ACCESS and STRAP, RETAINING. View more Retaining Band
January 2023
8
Marketplace 5340-00-376-6424
Request a Quotation from participating marketplace vendors
Related Documents 5340-00-376-6424 1+ Documents (More...)
/fsg-53/fsc-5340/us
RQST NE Updated Every Day 5340-00-376-6424 RQST Updated Every Day 5340-00-376-6424 RQST NE Related Documents
5340-00-376-6424 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-00-376-6424
Restrictions 5340-00-376-6424
5340-00-376-6424 is a Retaining Band that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5340-00-376-6424
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
Approved Sources 5340-00-376-6424
- Part Number
- Manufacturer
- Status
- 199-47102
- Manufacturer
- 28298 - Smith And Smith Aircraft Co (Active)
- Primary Buy
- Primary Buy
- 199-47102
- 89372 - Rockwell International Corp North (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5340-00-376-6424
- Characteristic
- Specifications
- FIIG
- Specifications
- T372-J
- Bend Radius [AGSJ]
- 0.187 Inches Nominal
- Basic Shape Style [AGTA]
- U Bend

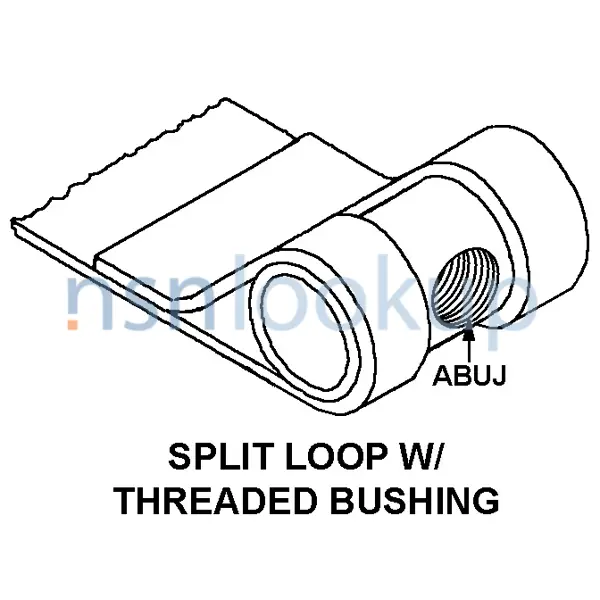

- End Style [ABQK]
- Split Loop With Threaded Bushing
- Material Document And Classification [MDCL]
- Qq-A-250/5 Fed Spec Single Material Response
- Material [MATT]
- Aluminum Alloy 2024
- Length [ABRY]
- 24.313 Inches Nominal
- Thread Size [ABUJ]
- 0.250-28
- Width [ABGL]
- 1.125 Inches Nominal
- Thickness [ABNM]
- 0.064 Inches Nominal
Similar Supply Items to 5340-00-376-6424
Freight Information 5340-00-376-6424
5340-00-376-6424 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 013120. A Sub NMFC of F. It has a NMFC Description of ALUMINUM ARTICLE NOI SUB 6. 5340-00-376-6424 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 05380 which rates the freight between FCL and LCL. 5340-00-376-6424 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-00-376-6424 is not classified as a special type of cargo when transported by water. 5340-00-376-6424 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5340-00-376-6424
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
